Impact Sensitivity Test

  1. Remove the key from the ignition switch.
  2. Close all windows.
  3. Close all doors and the rear gate or trunk lid.
  4. Cover the hood with a blanket.
  5. Press the LOCK/ARM button of the transmitter.
  6. Confirm that the security indicator light blinks every 2 seconds.

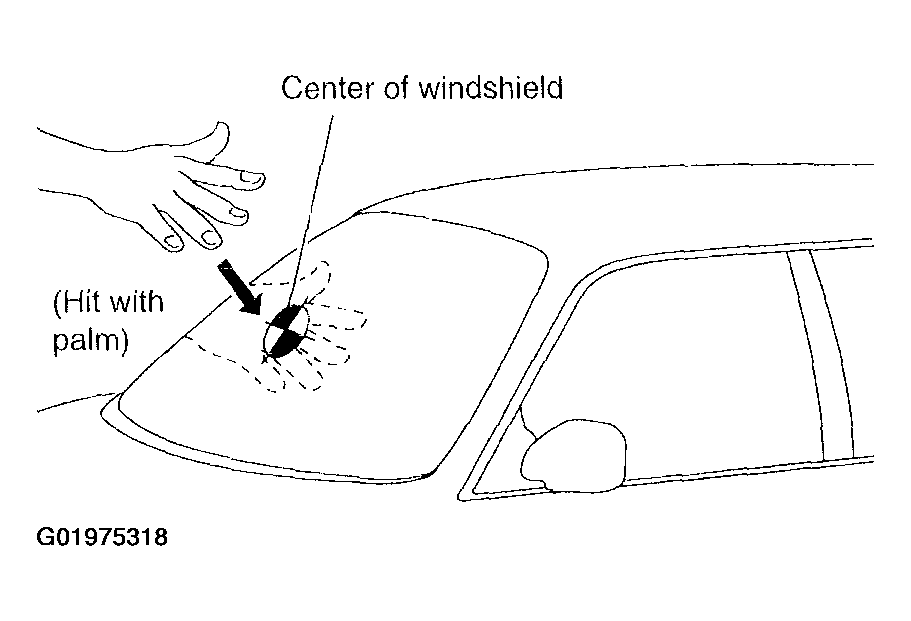

  7. Hit the center of the windshield with your palm and make sure the alarm operates.
    Fig 1: Testing Alarm Operates
    G01975318Courtesy of SUBARU OF AMERICA, INC.

    If NG, adjust the impact sensitivity, see ADJUSTMENT , Security Control Module.
