Impact Sensitivity

NOTE: Before adjustment, make sure the security control module has been securely installed on the bracket.
  1. Remove the security control module, see REMOVAL , Security Control Module.
  2. Adjust the sensitivity adjust screw in the security control module.
    NOTE: After adjusting, be sure to plug the adjust screw hole.

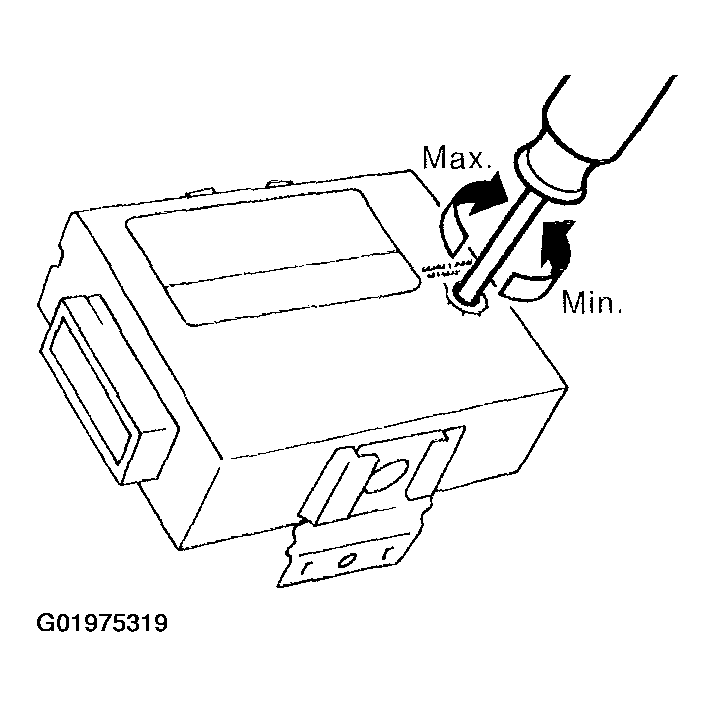

    Fig 1: Adjusting Sensitivity Screw In The Security Control Module
    G01975319Courtesy of SUBARU OF AMERICA, INC.
  3. Install the security control module.
  4. Perform the impact sensitivity test.
