Electrical Specification
>>
Integrated Module
Integrated Module
Fig 1: Integrated Module Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

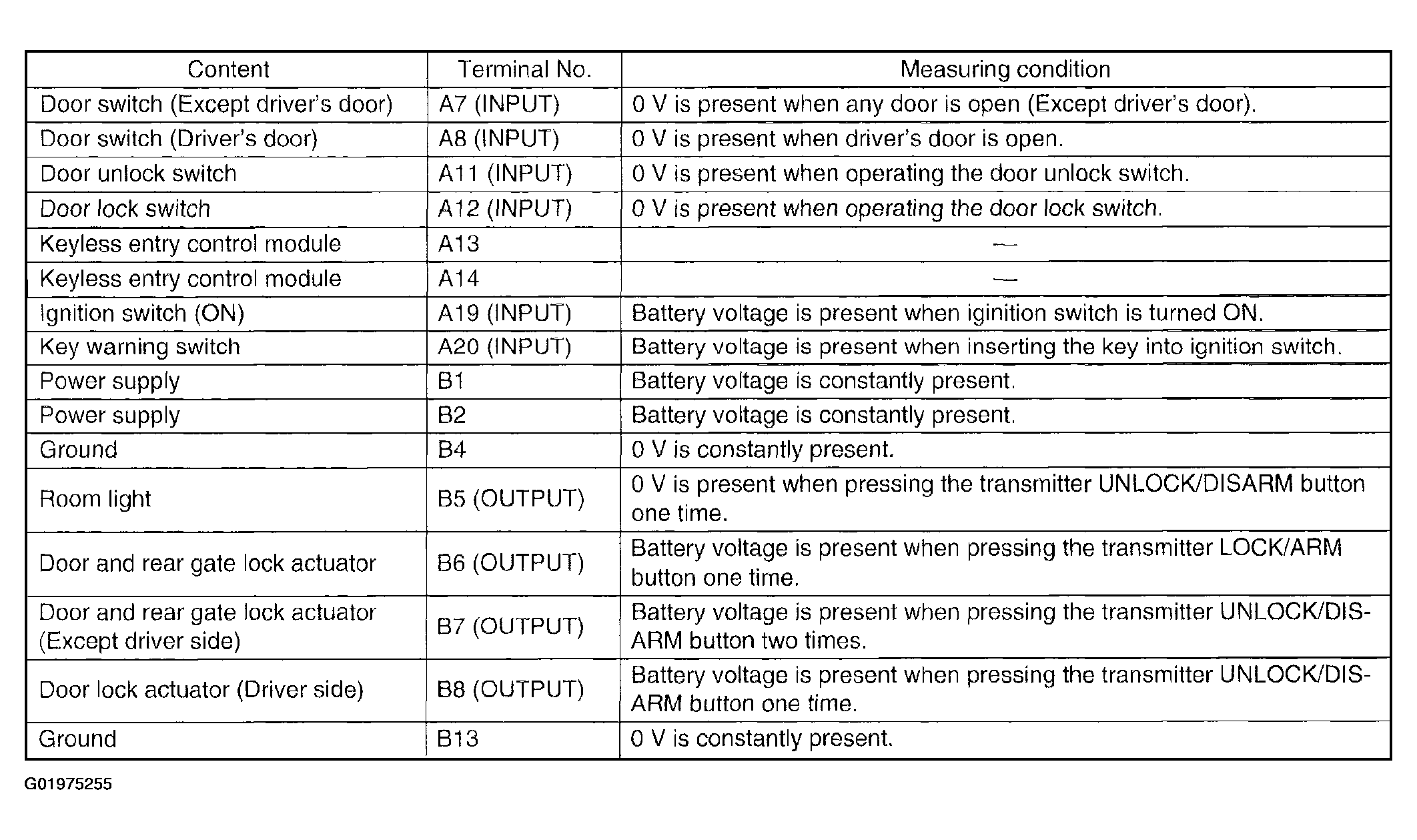

Fig 2: Integrated Module Input/Output Signals (Pin Voltage) Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
