Keyless Entry Control Module: Removal

  1. Disconnect the ground terminal from battery.
  2. Remove the instrument panel lower cover, see REMOVAL , Instrument Panel Assembly.
  3. Remove the nut, then remove the keyless entry control module while disconnecting the connector.

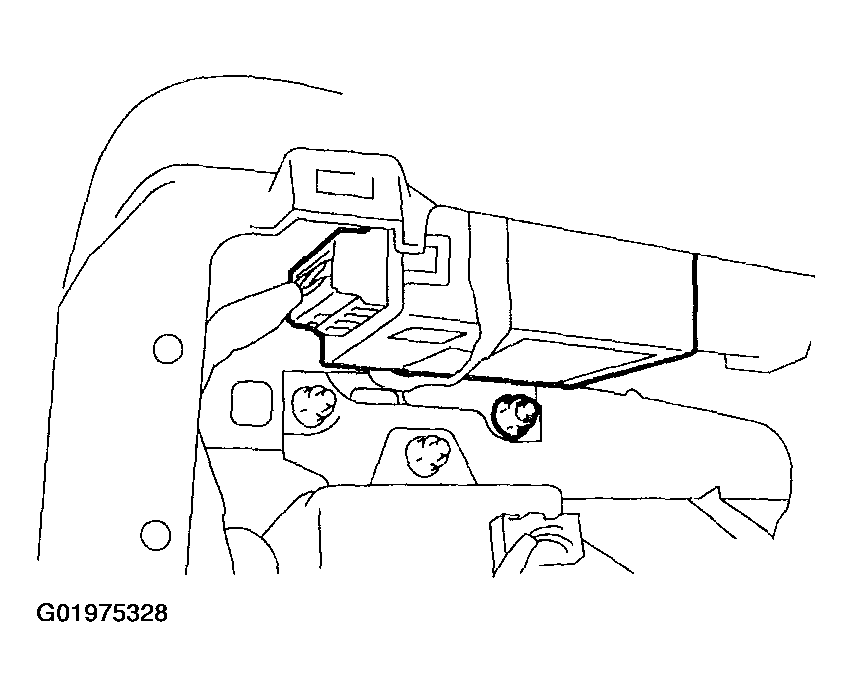

    Fig 1: Removing Keyless Entry Control Module
    G01975328Courtesy of SUBARU OF AMERICA, INC.
