Turbo Models

The intake system consists of an air intake duct, a resonator chamber, and an air cleaner element housed in its case. The resonator, located upstream of the air cleaner case, effectively reduces the intake noise level.

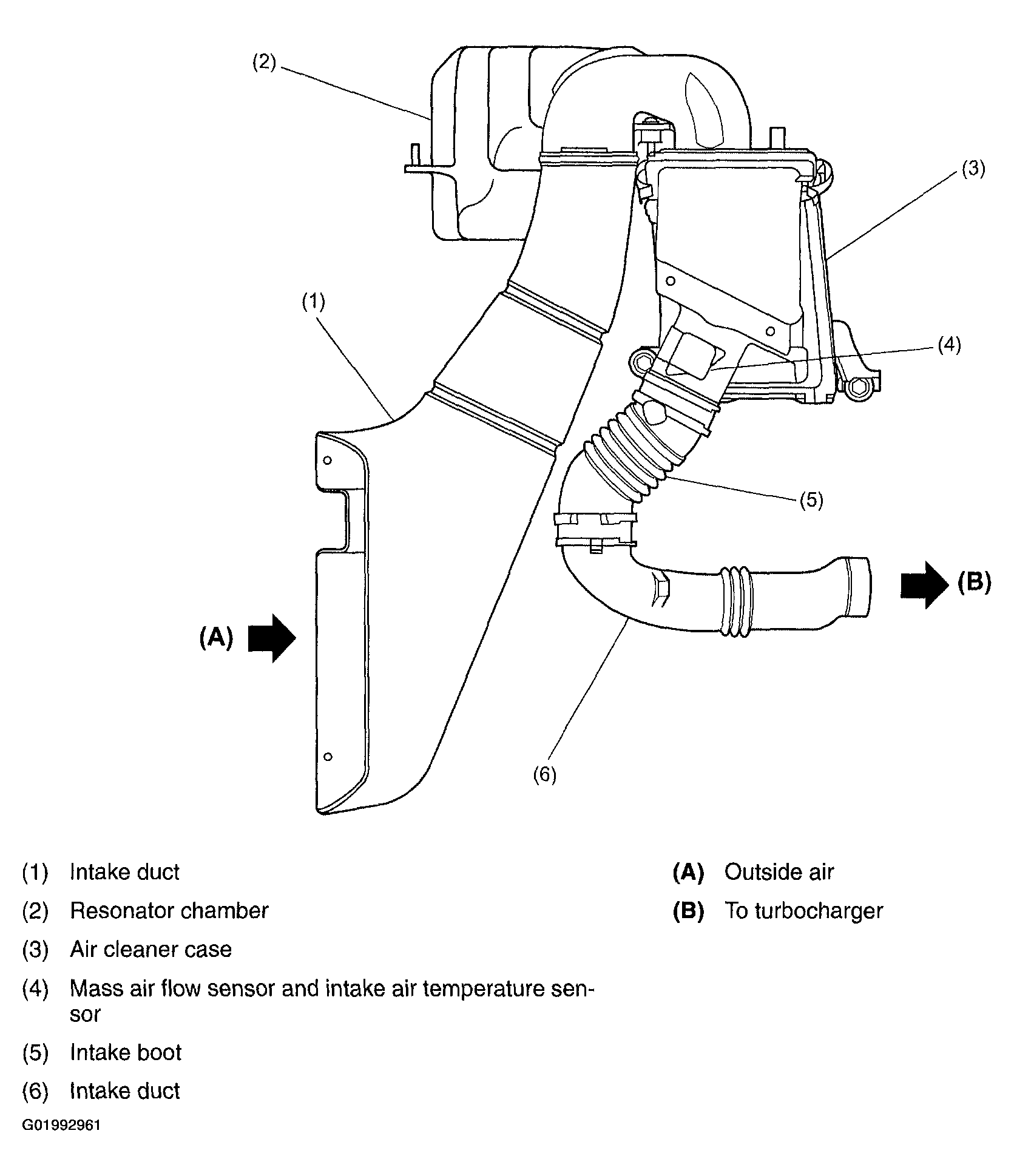

Fig 1: Identifying Air Intake System Ducting (Turbo)

Courtesy of SUBARU OF AMERICA, INC.
