Home >> Subaru >> 2003 >> Impreza Outback Sport, Standard >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System >> General Description >> Components >> Non-Turbo Model

Non-Turbo Model

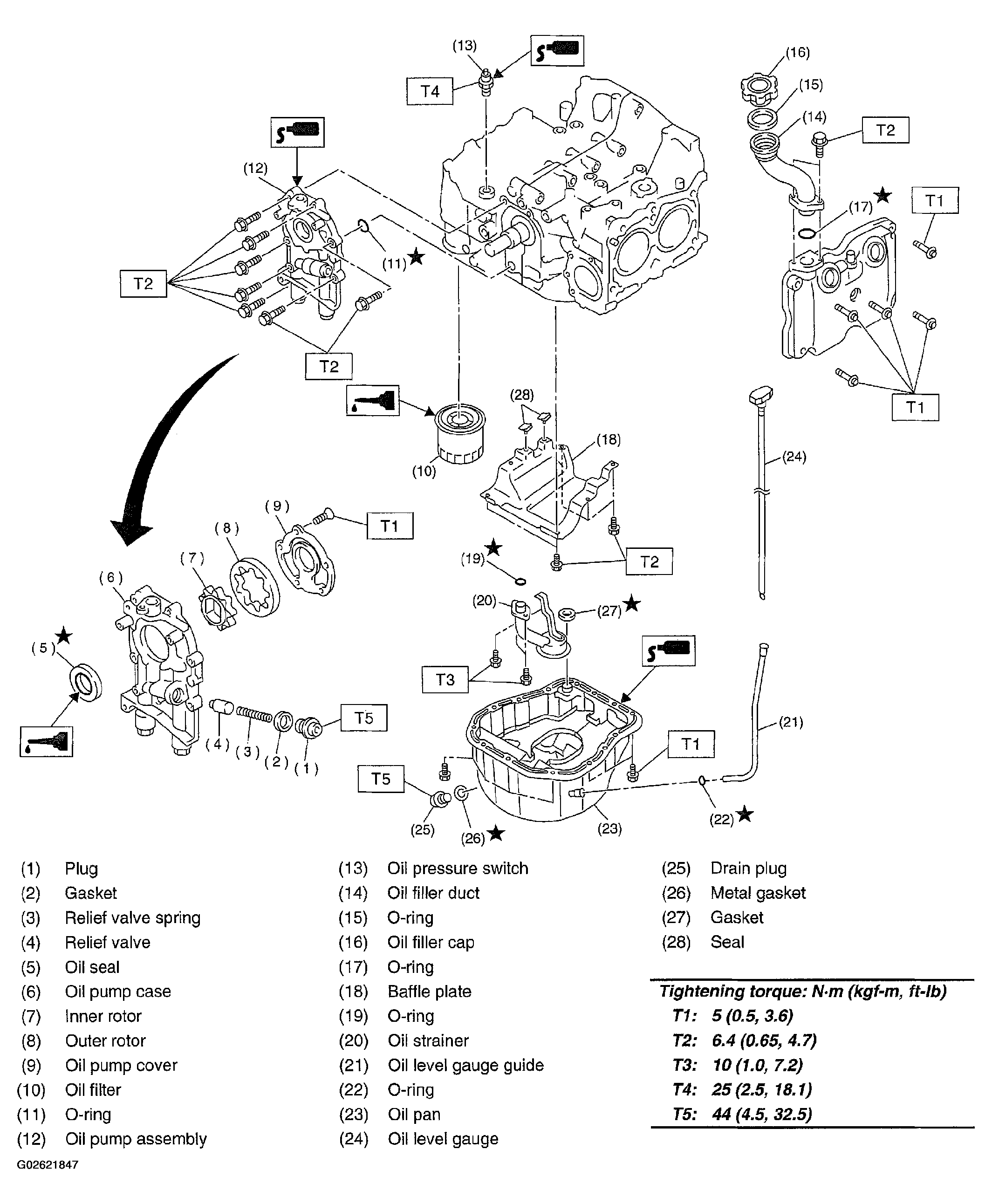

Fig 1: Lubrication System Replacement Components (Non-Turbo Model) With Torque Specifications

G02621847

Courtesy of SUBARU OF AMERICA, INC.
