G Sensor: Removal

  1. Disconnect the ground terminal from battery.

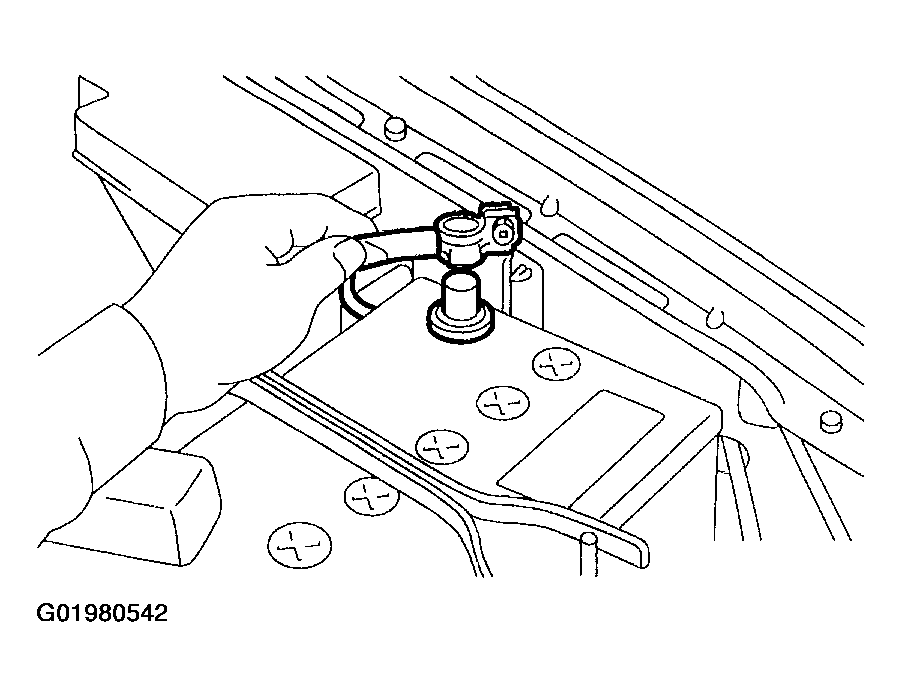

    Fig 1: Disconnecting Ground Terminal From Battery
    G01980542Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the console cover. See CONSOLE BOX .
  3. Disconnect the connector from G sensor.
  4. Remove the G sensor from body.
    CAUTION:
    • Do not drop or bump the G sensor.
    • Do not disassemble the G sensor and bracket.
    Fig 2: Removing G Sensor From Body
    G01980543Courtesy of SUBARU OF AMERICA, INC.
