Conditions For Abs Sequence Control

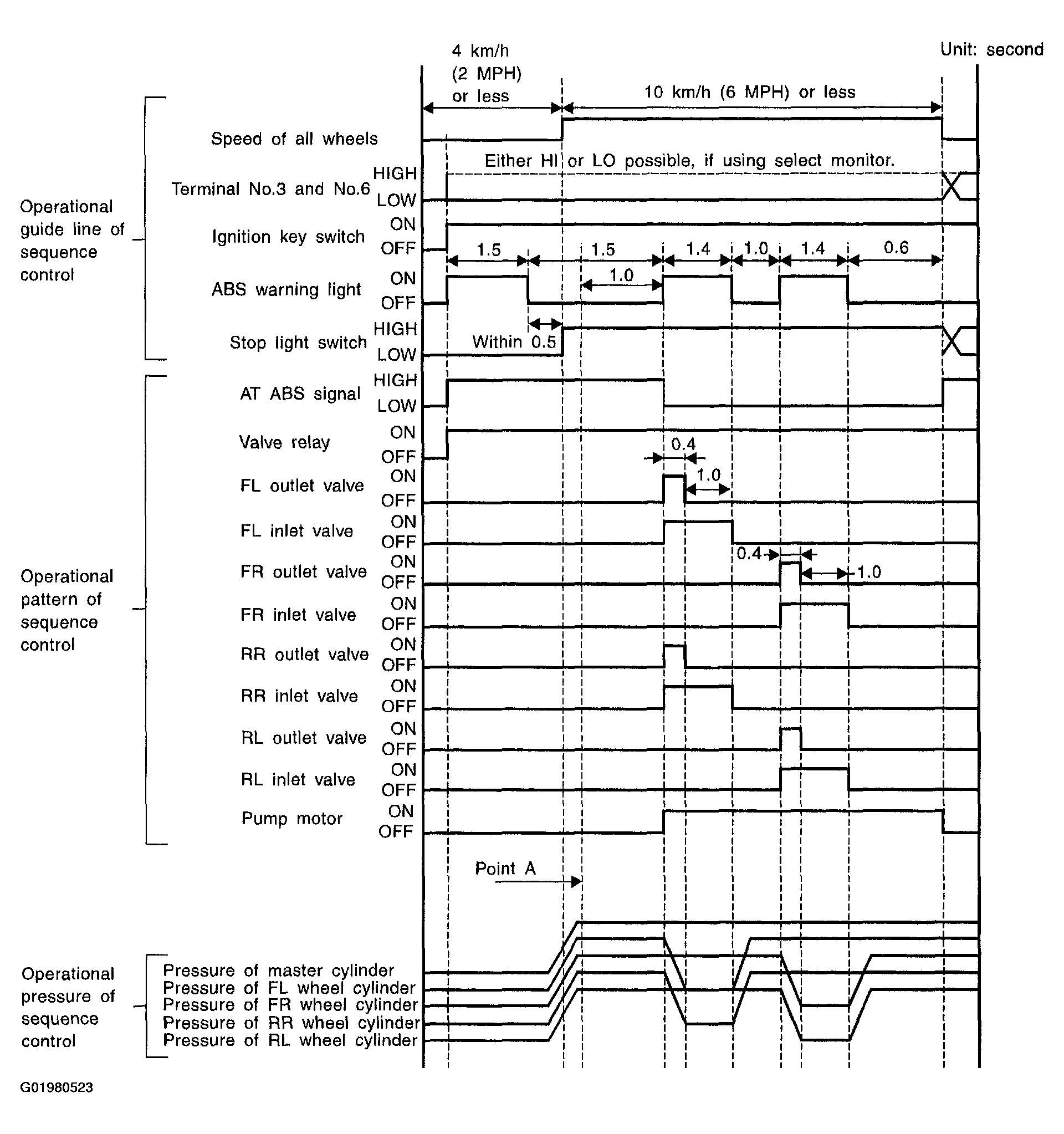

Fig 1: Conditions For ABS Sequence Control Chart
G01980523Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • When the select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by diagnosis connector.
