Abs Control Module And Hydraulic Control Unit (ABSCM & H/U): Installation
- Install the ABSCM & H/U bracket.
- Tightening torque: 33 N.m (3.3 kgf-m, 24 ft-lb)

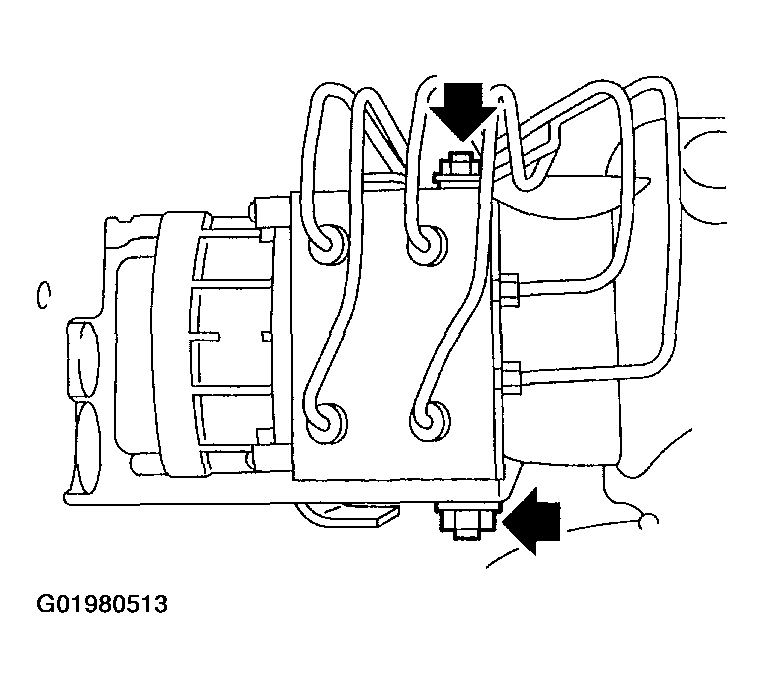

- Install the ABSCM & H/U.CAUTION: Confirm that the specifications of the ABSCM & H/U conforms to the vehicle specifications.
- Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Connect the brake pipes to their correct ABSCM & H/U connections.
- Tightening torque: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
- Using cable clip, secure the ABSCM & H/U harness to bracket.
- Connect the connector to the ABSCM & H/U.CAUTION:
- Be sure to remove all foreign matter from inside the connector before connecting.
- Ensure that the ABSCM & H/U connector is securely locked.
- Install the air intake duct.
Non-turbo model: See INSTALLATION , Air Intake Duct.
Turbo model: See INSTALLATION , Air Intake Duct.
- Bleed air from the brake system. See BLEEDING BRAKE SYSTEM .
