Remote Control Mirror Switch: Removal

  1. Disconnect the ground terminal from battery.
  2. Remove the console cover.
  3. Disconnect the connector.

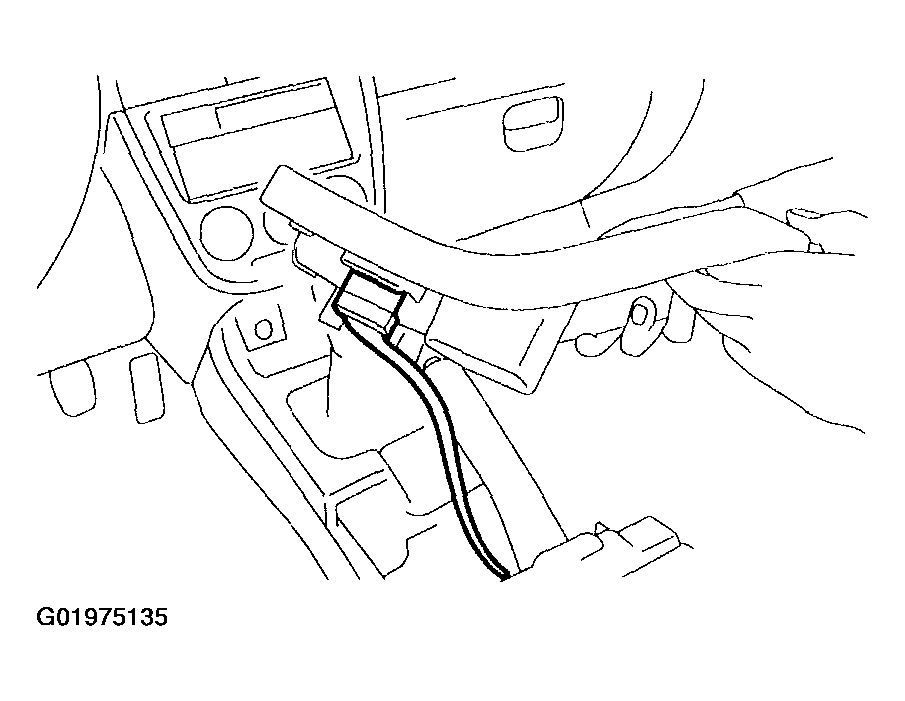

    Fig 1: Removing Remote Control Mirror Switch
    G01975135Courtesy of SUBARU OF AMERICA, INC.
