Change Over Switch Left Position

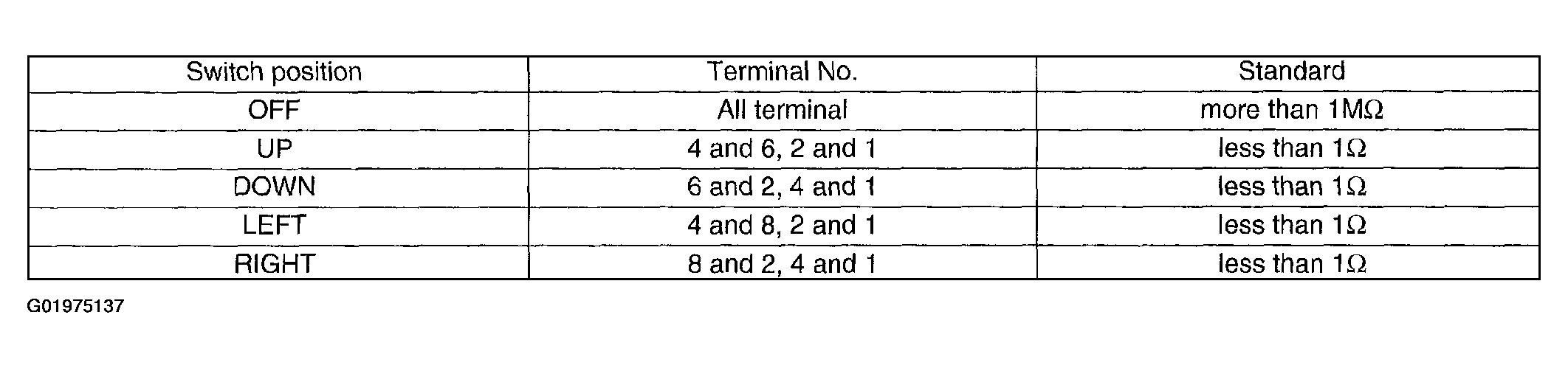

Fig 1: Inspection Rearview Mirror Switch Operation Left Position

G01975137

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the switch.
