Home >> Subaru >> 2003 >> Impreza Outback Sport, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Windows >> Power Window Control Switch >> Removal >> Main Switch

Main Switch

  1. Disconnect the ground terminal from battery.
  2. Loosen the screw to remove power window main switch.
  3. Disconnect the connector.

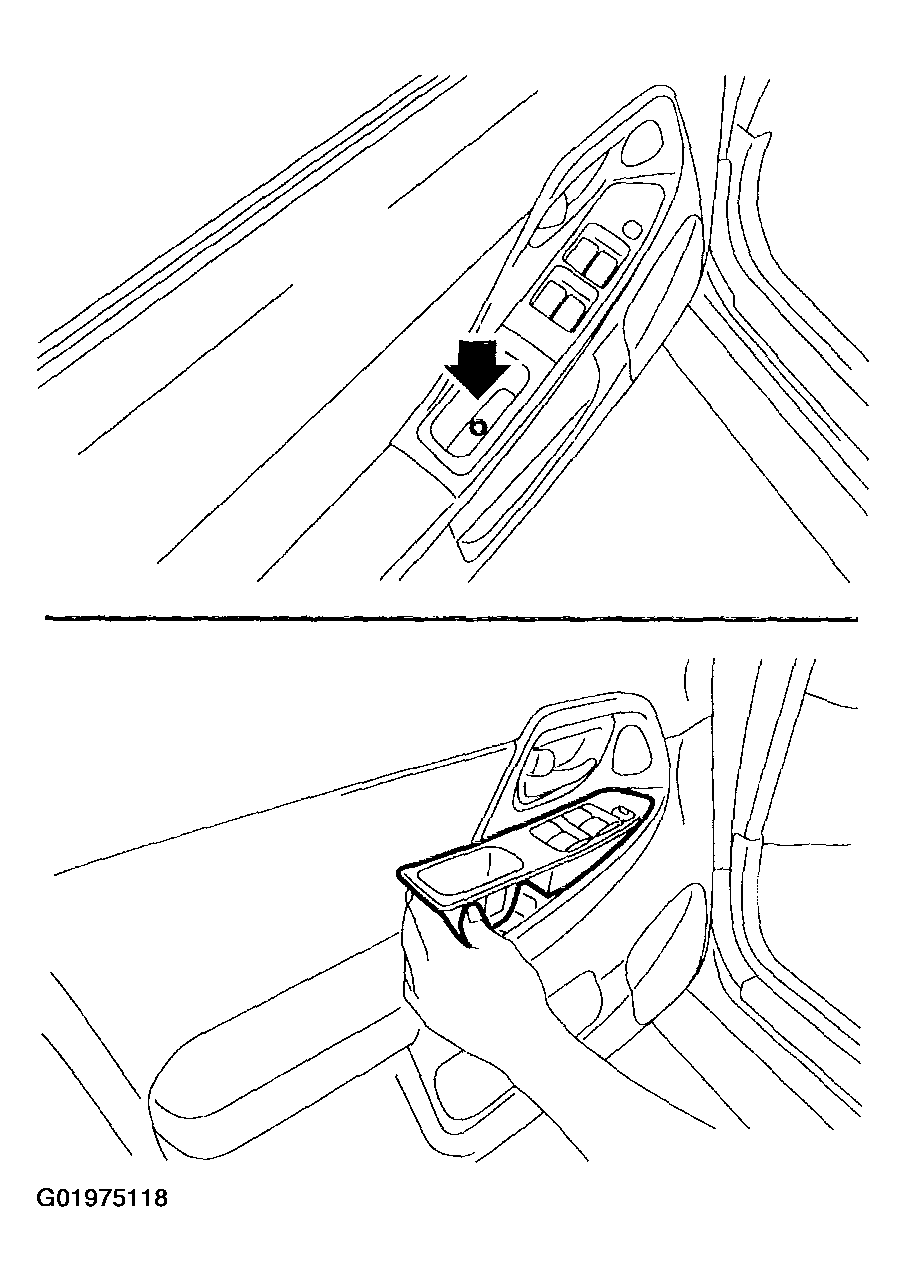

    Fig 1: Removing Power Window Main Switch
    G01975118Courtesy of SUBARU OF AMERICA, INC.
