AT Shift Lock Solenoid and "P" Position Switch
>>
Inspection
AT Shift Lock Solenoid and "P" Position Switch: Inspection

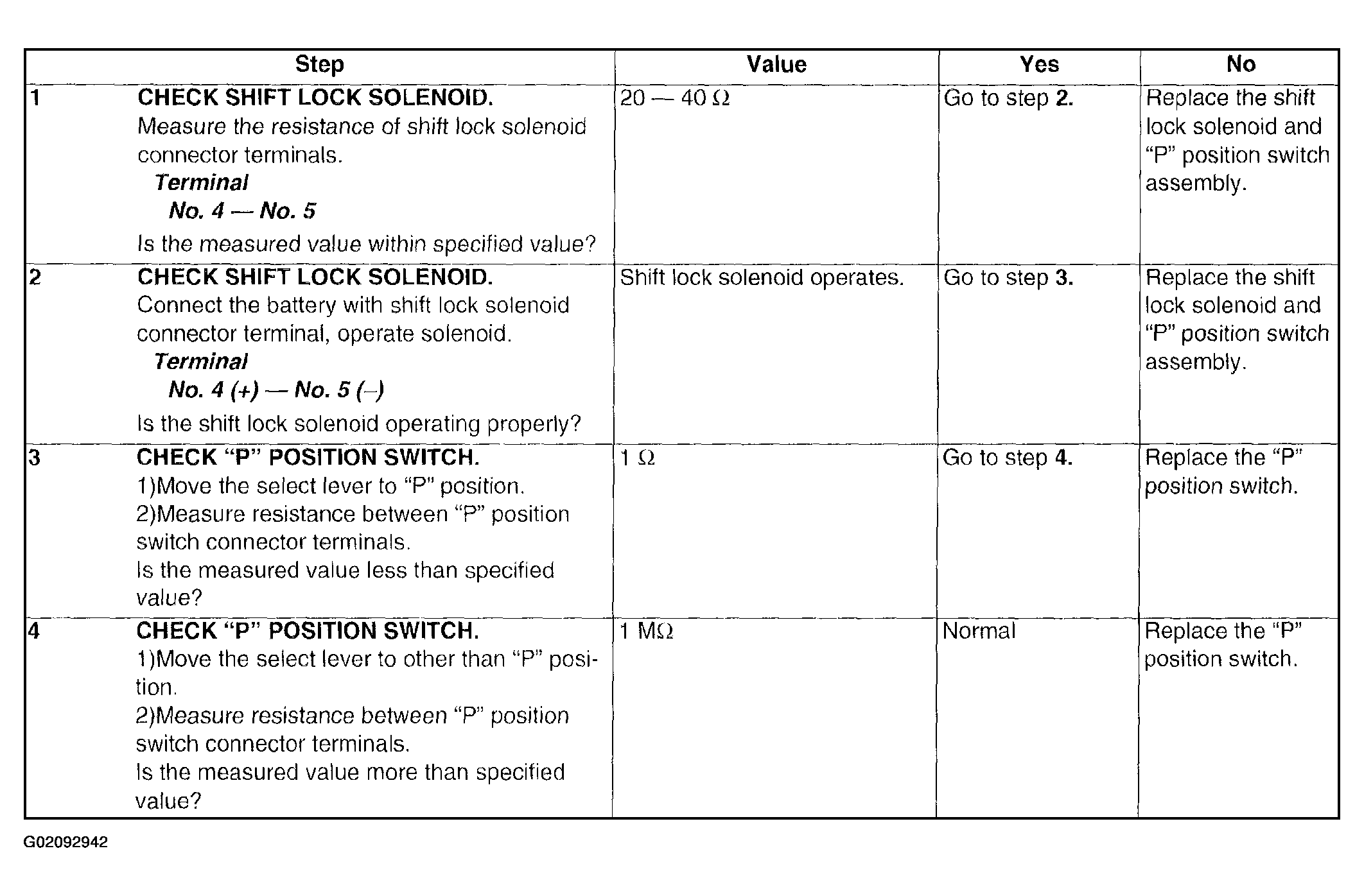

Fig 1: Inspection Shift Lock Solenoid & Position Switch
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
