CROSSMEMBER And Cushion Rubber

  1. Install the rear cushion rubber.
    1. Tightening torque:  39 N.m (4.0 kgf-m, 29 ft-lb)
  2. Install the crossmember.

    Tightening torque:

    1. T1:  35 N.m (3.6 kgf-m, 26 ft-lb)
    2. T2:  70 N.m (7.1 kgf-m, 51 ft-lb)

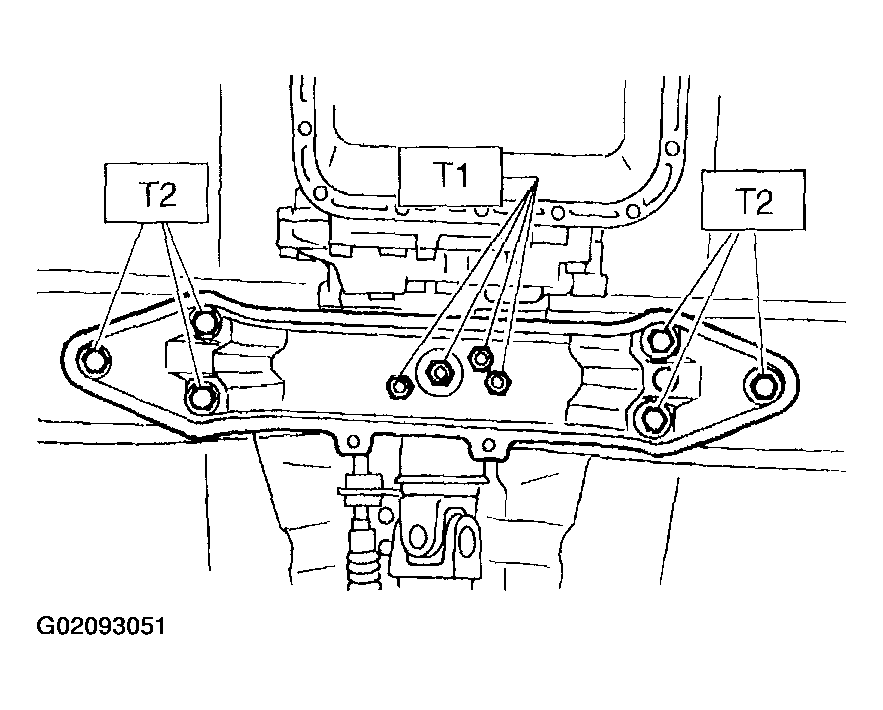

    Fig 1: Installing Crossmember
    G02093051Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the transmission jack.
  4. Install the heat shield cover.
  5. Install the front, center, rear exhaust pipes and the muffler. Refer to INSTALLATION , Front Exhaust Pipe, INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.
