Parking Pawl: Installation

  1. Install the parking pawl, shaft and return spring.

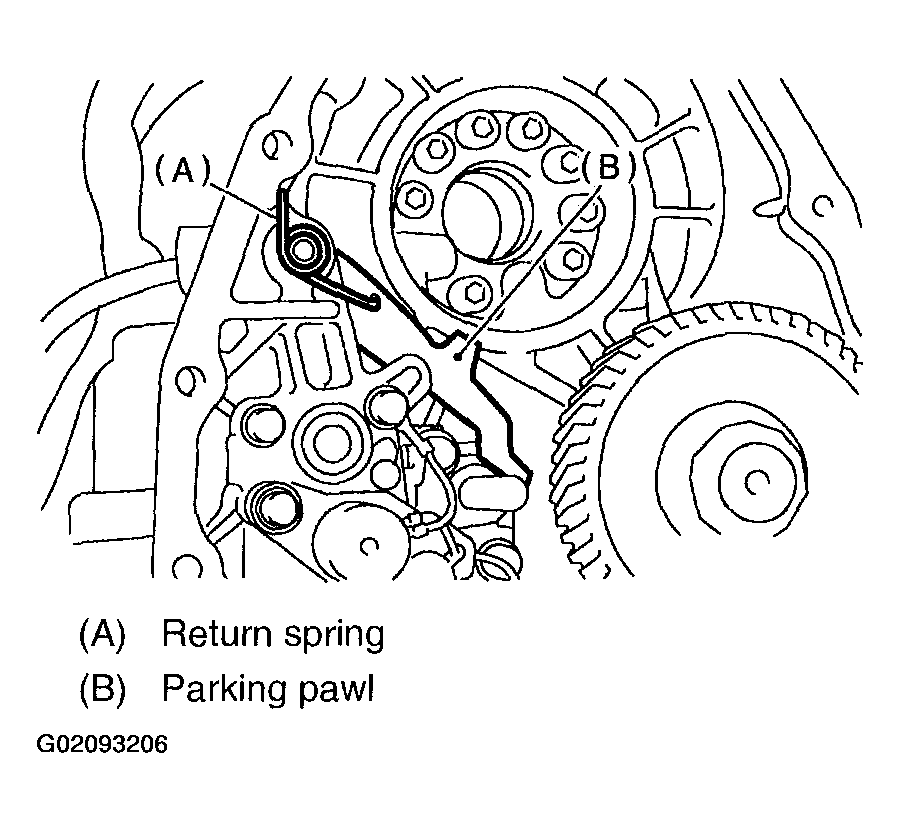

    Fig 1: Installing Parking Pawl, Shaft & Return Spring
    G02093206Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. Refer to INSTALLATION , Reduction Drive Gear.
  3. Install the rear vehicle speed sensor and extension case. Refer to INSTALLATION , Extension Case.
  4. Install the transmission assembly to the vehicle. Refer to INSTALLATION , Automatic Transmission Assembly.
