Oil Charger Pipe: Removal

  1. Remove the air cleaner case. Refer to REMOVAL , Air Cleaner Case.
  2. Remove the oil charger pipe, and remove the O-ring from the flange face.

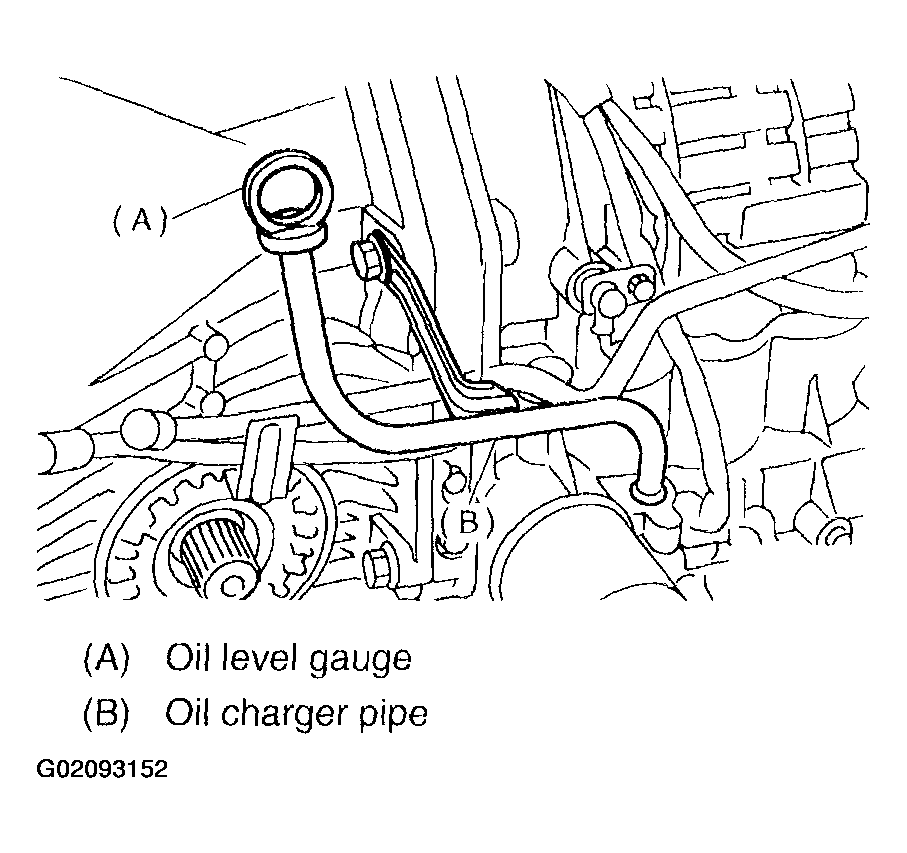

    Fig 1: Removing Oil Charger Pipe
    G02093152Courtesy of SUBARU OF AMERICA, INC.
