Low and Reverse Brake: Inspection

Check for the following.

• Drive plate facing for wear or damage
• Snap ring for wear and spring retainer for deformation

1. Place the same thickness of shim on both sides to prevent retaining plate from tilting.
2. Inspect clearance and select retaining plate.
   1. Standard value:  0.7 - 1.2 mm (0.028 - 0.047 in)
   2. Allowable limit:  2.2 mm (0.087 in)

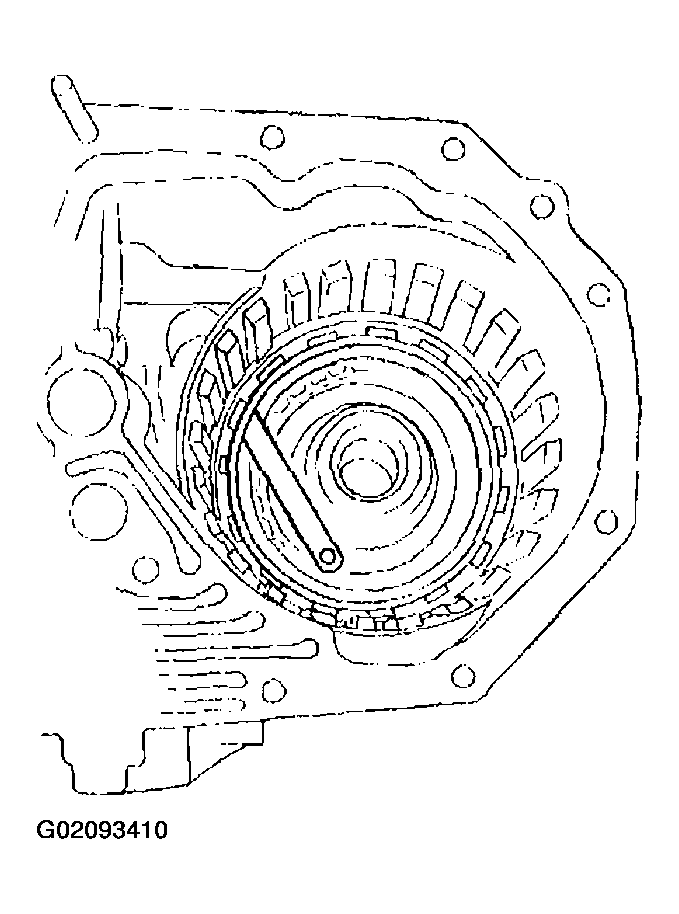

   Fig 1: Inspecting Clearance

   Courtesy of SUBARU OF AMERICA, INC.

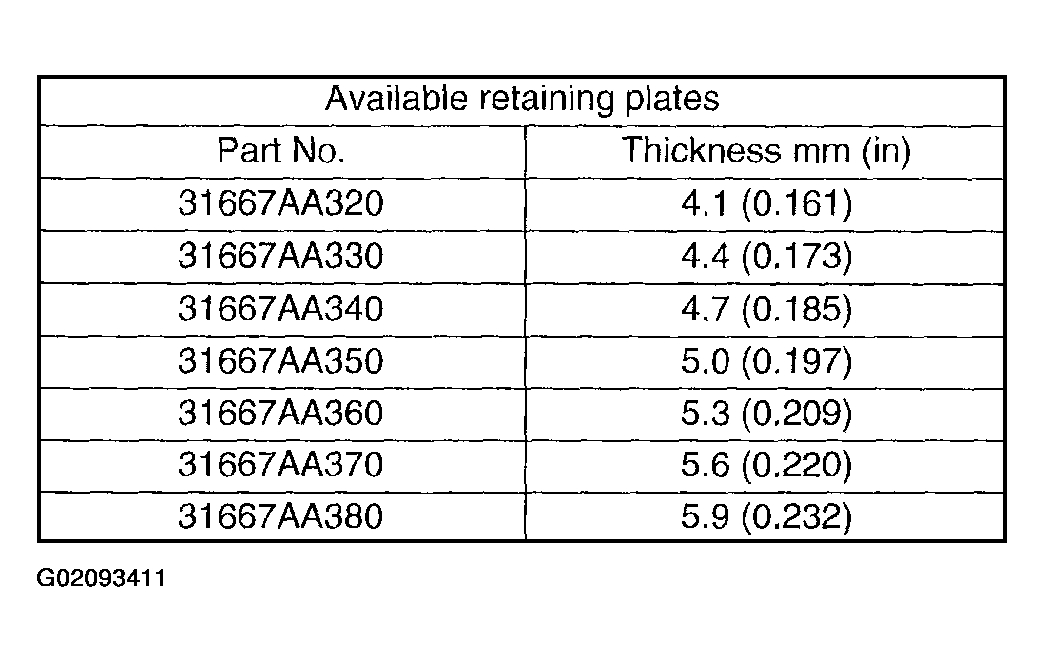

   Fig 2: Retaining Plate Specifications Chart

   Courtesy of SUBARU OF AMERICA, INC.
