Automatic Transmission
>>
General Description
>>
Component
>>
Torque Converter Clutch And Case
Torque Converter Clutch And Case

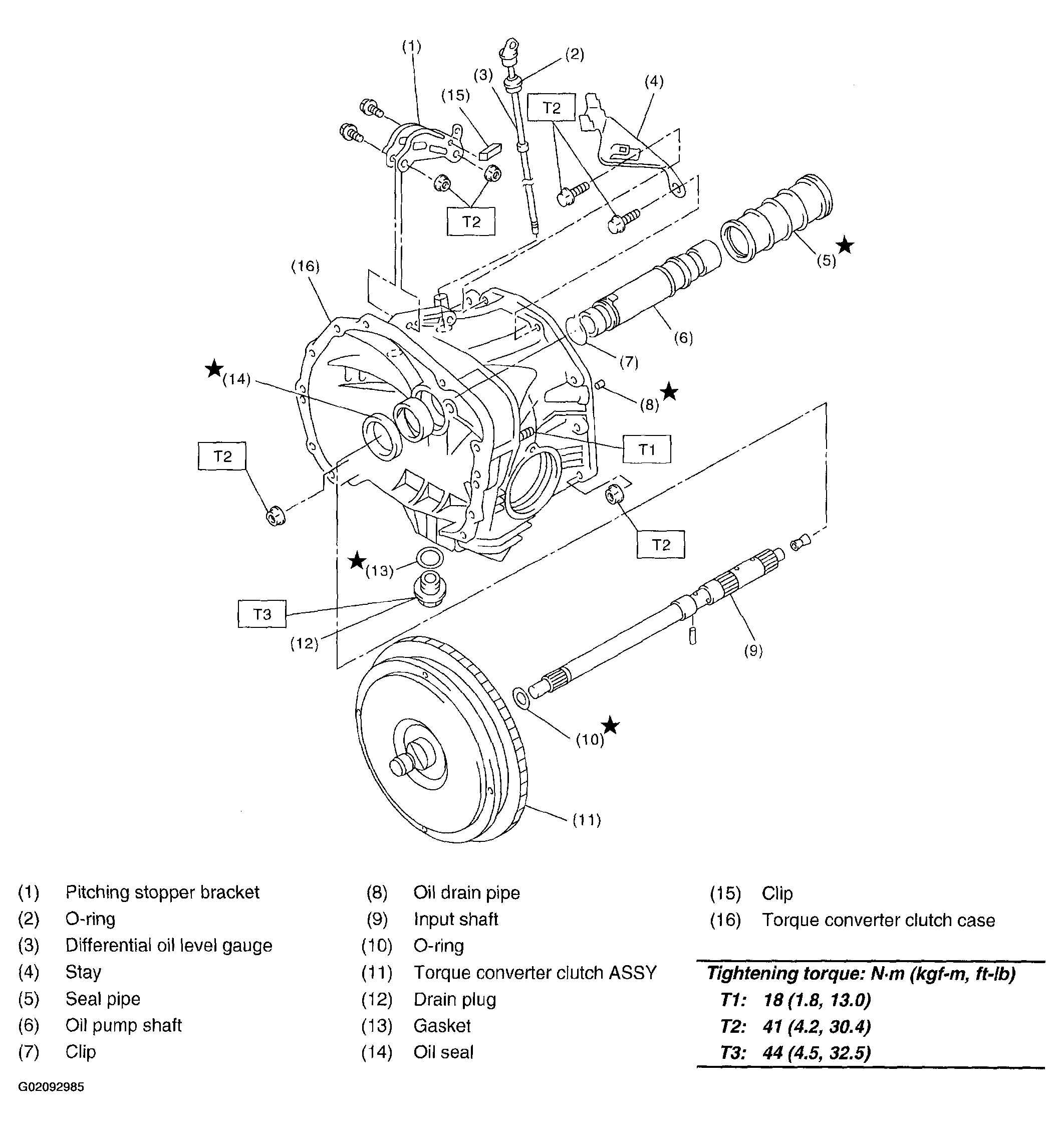

Fig 1: Exploded View Of Torque Converter Clutch & Case With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
