P And N Ranges

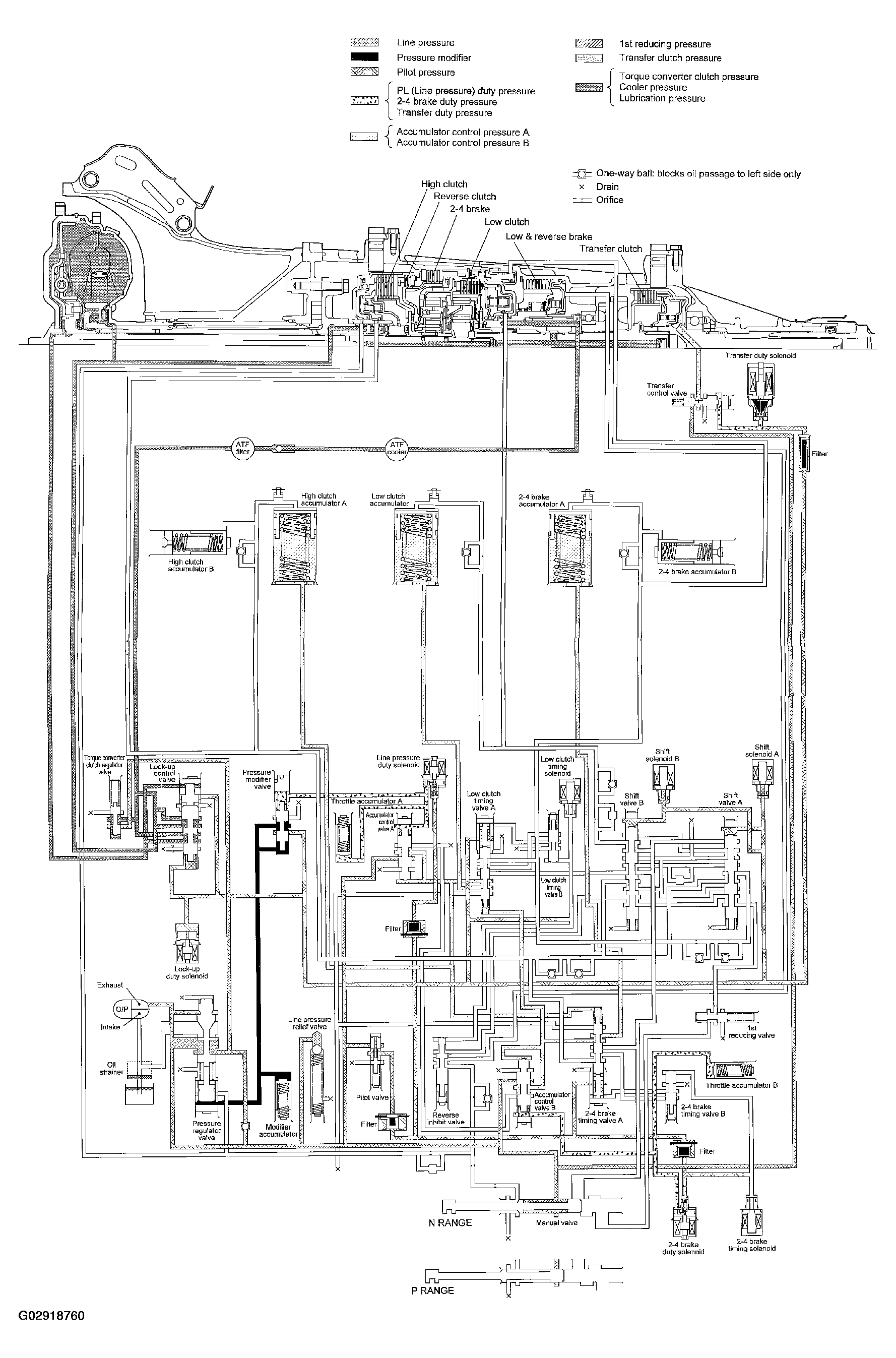

Fig 1: Hydraulic Schematic Diagram - P & N Ranges

G02918760

Courtesy of SUBARU OF AMERICA, INC.
