Hydraulic Control Valve: Construction

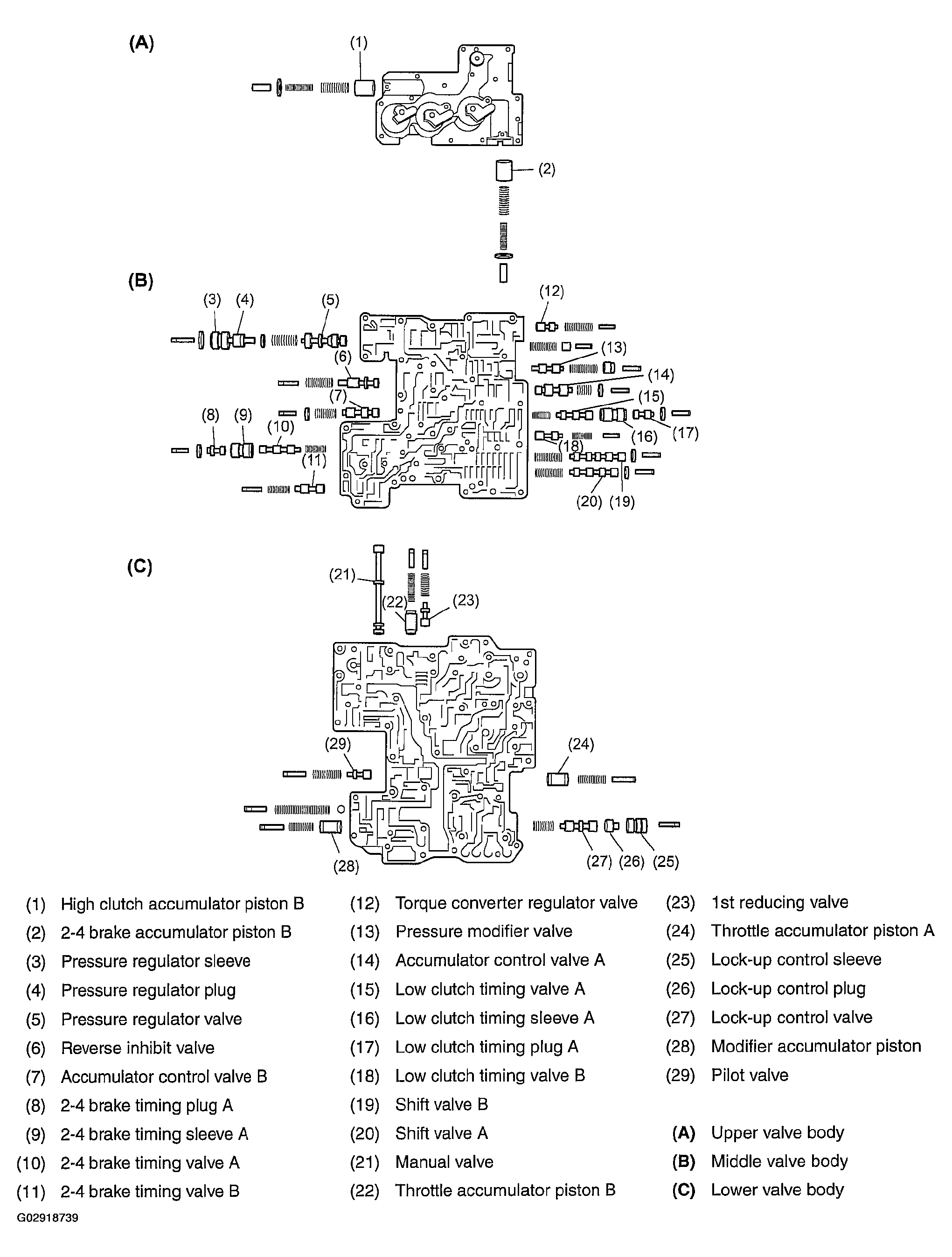

Fig 1: Hydraulic Control Valve Components

G02918739

Courtesy of SUBARU OF AMERICA, INC.
