Gear Train: Construction

The gear train consists of two sets of planetary gears, three sets of multi-plate clutches, two sets of multi-plate brakes and one set of one-way clutch.

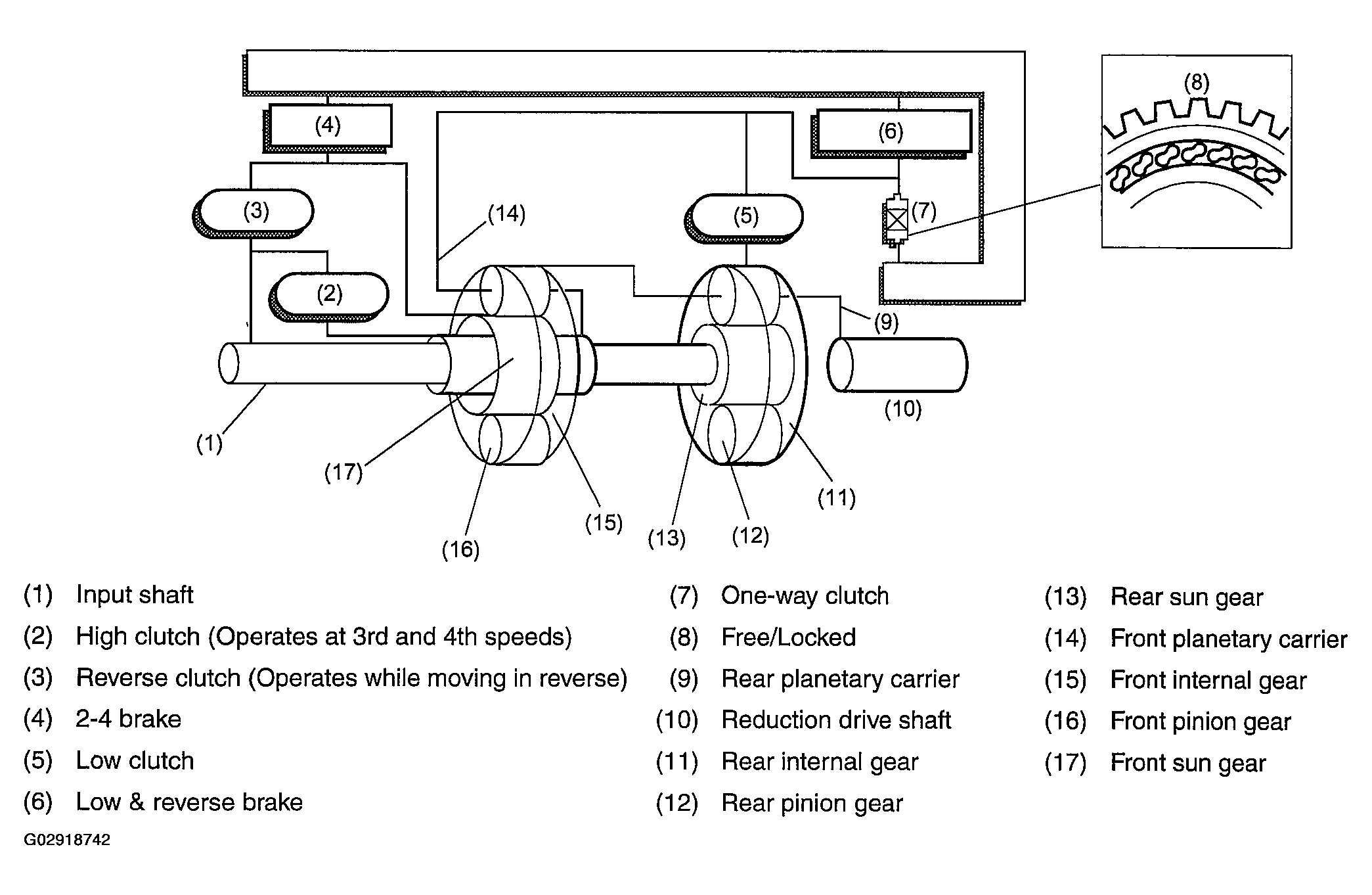

Fig 1: Gear Train Functioning Parts
G02918742Courtesy of SUBARU OF AMERICA, INC.
