Transfer Duty Solenoid

This solenoid is mounted on the transfer hydraulic pressure control unit on the rear end of transmission case. Its duty ratio is controlled by signals from the TCM. It then controls the transfer clutch/control valve to control the pressure applied to the transfer clutch.

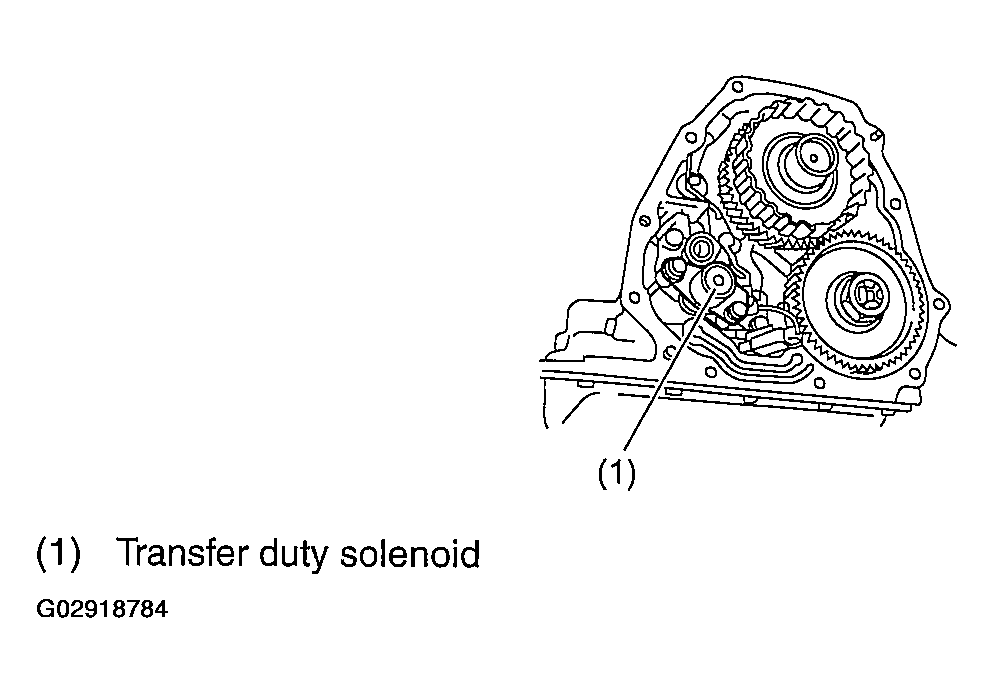

Fig 1: Identifying Transfer Duty Solenoid

Courtesy of SUBARU OF AMERICA, INC.
