Transfer Clutch

The transfer clutch drum and rear drive shaft are joined to each other by welding. The rear drive shaft has drilled oil passages for transfer clutch control and also for lubrication of extension bushing and ball bearing in it.

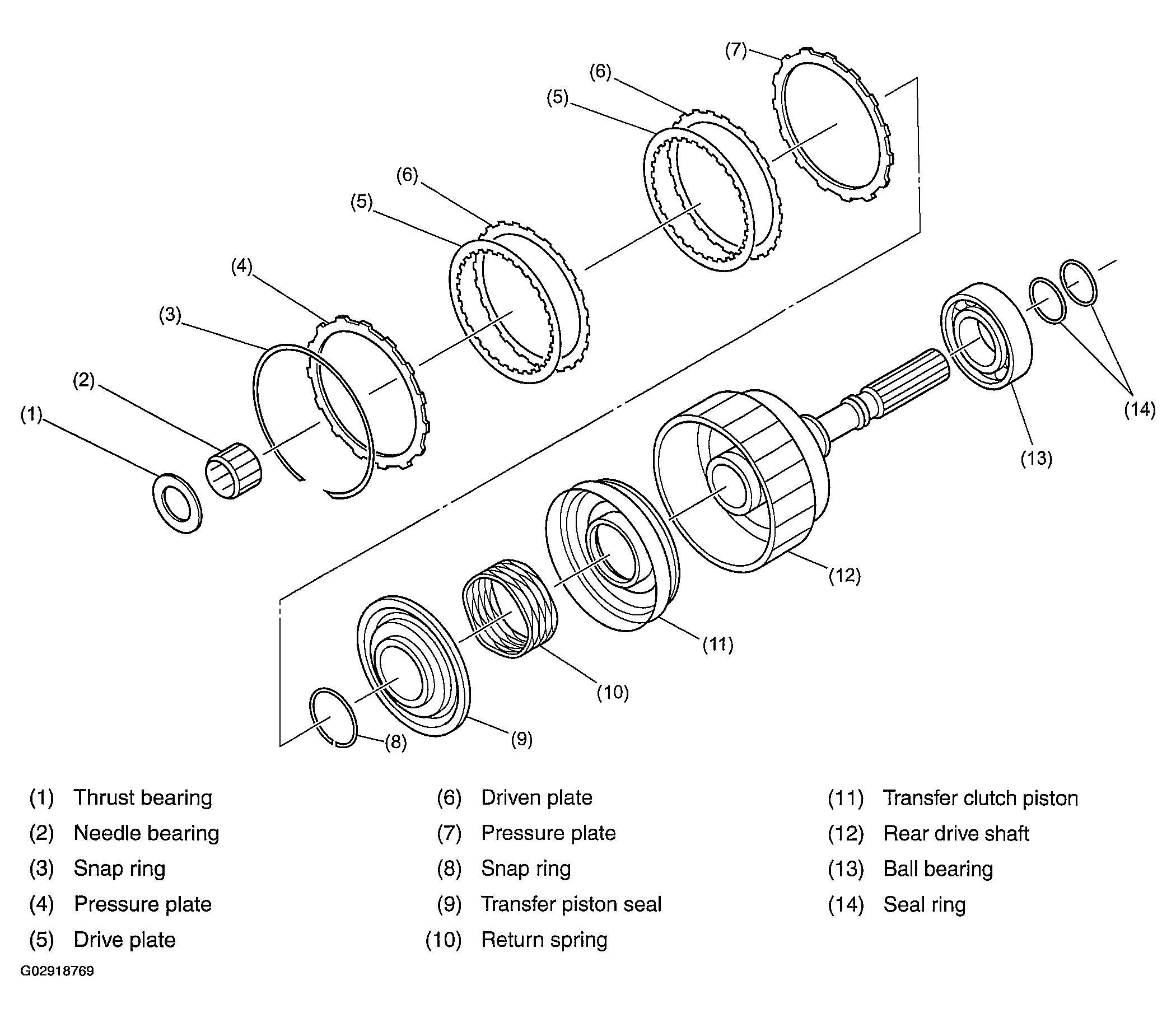

Fig 1: Transfer Clutch Components
G02918769Courtesy of SUBARU OF AMERICA, INC.
