Symptom Related Diagnostic: Inspection

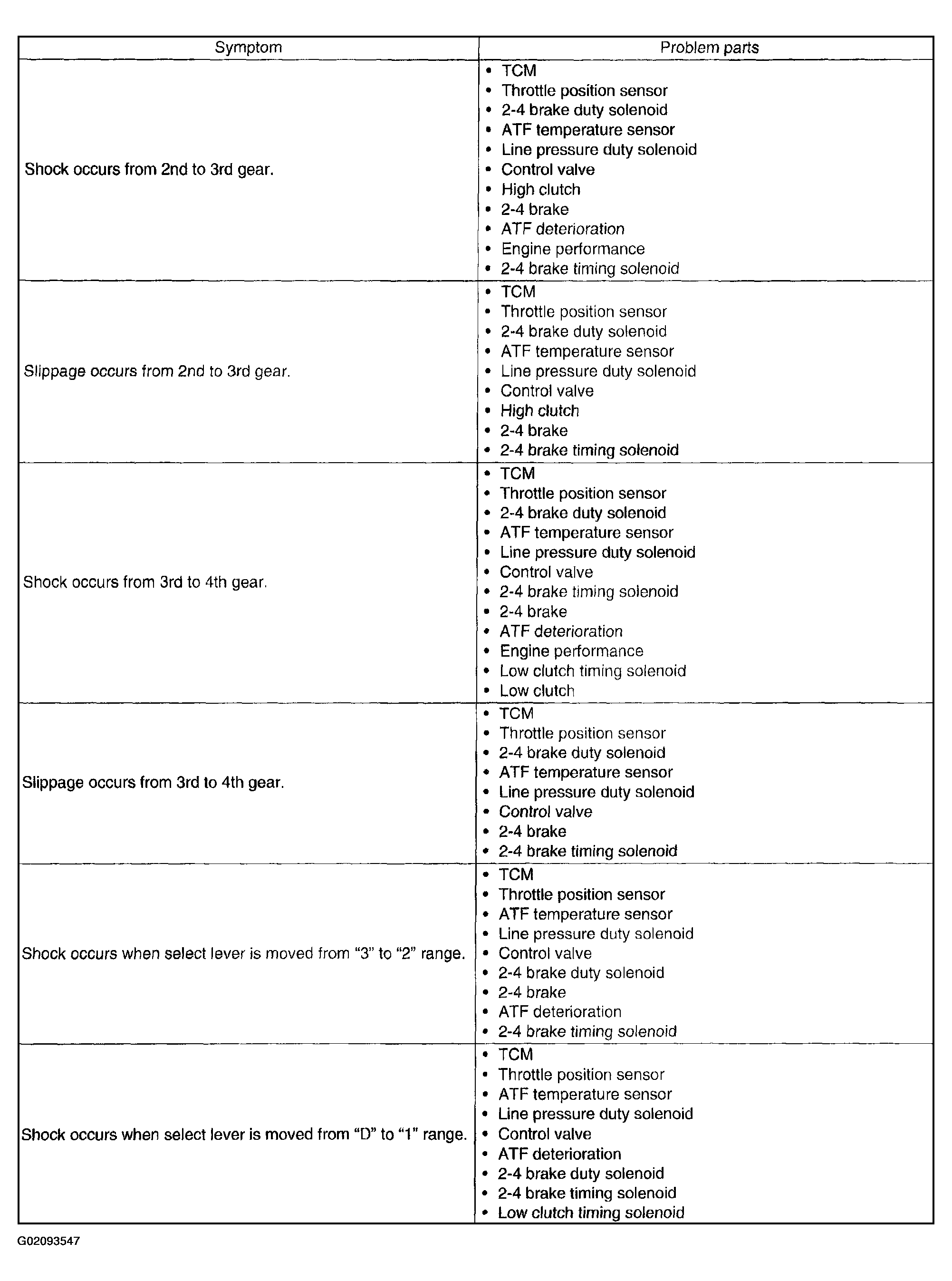

Fig 1: Symptom Related Inspection Chart (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

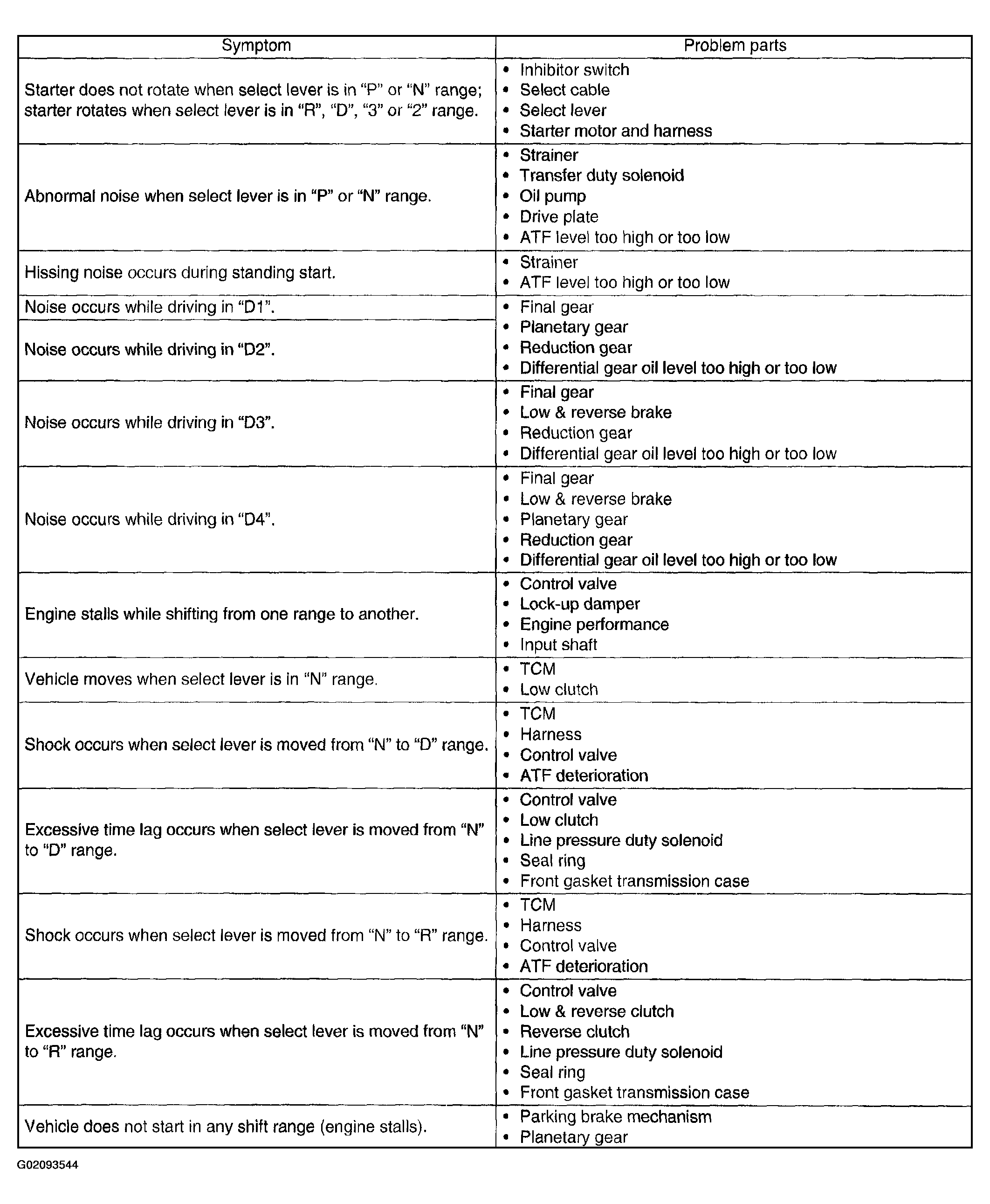

Fig 2: Symptom Related Inspection Chart (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

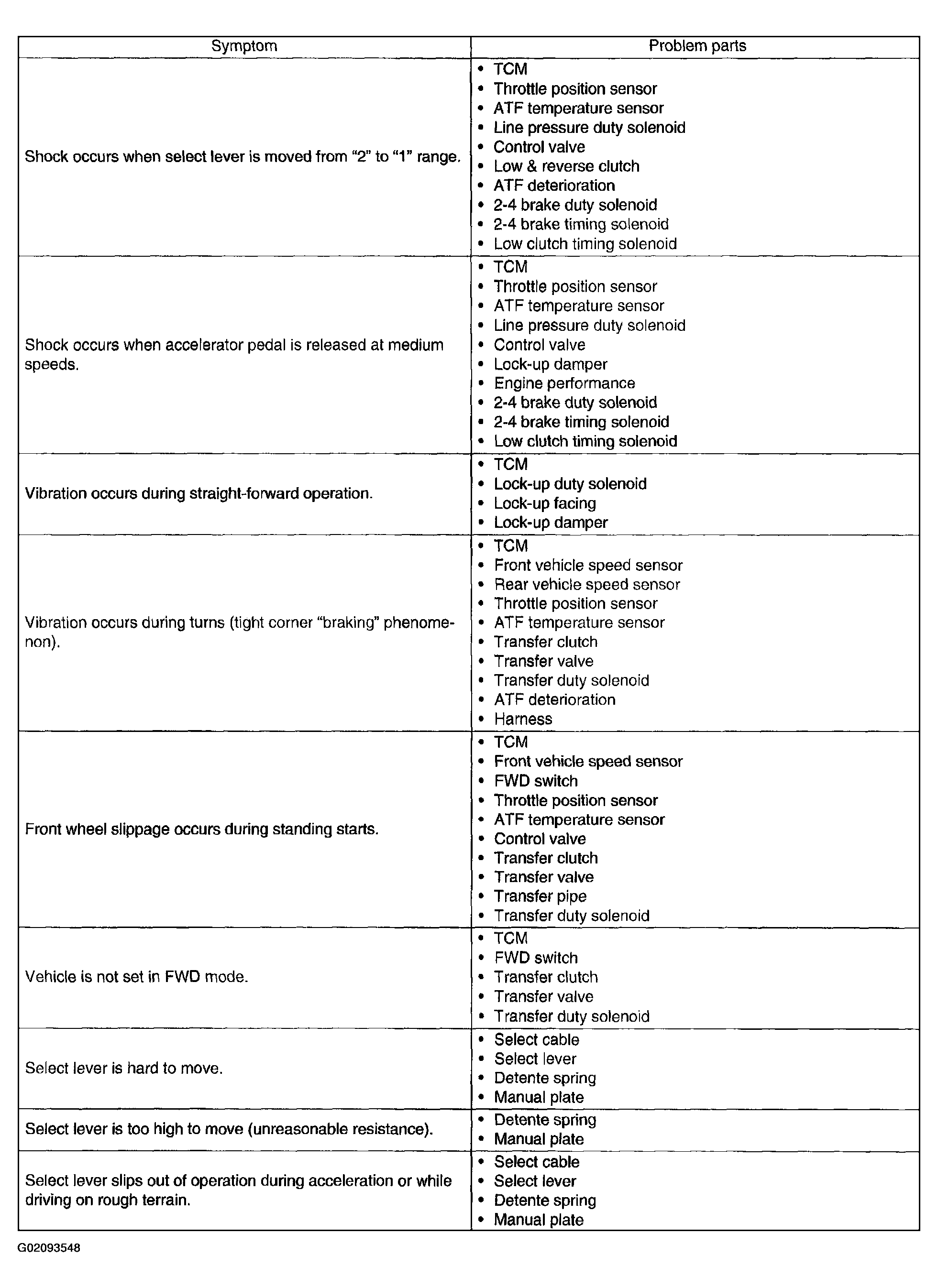

Fig 3: Symptom Related Inspection Chart (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

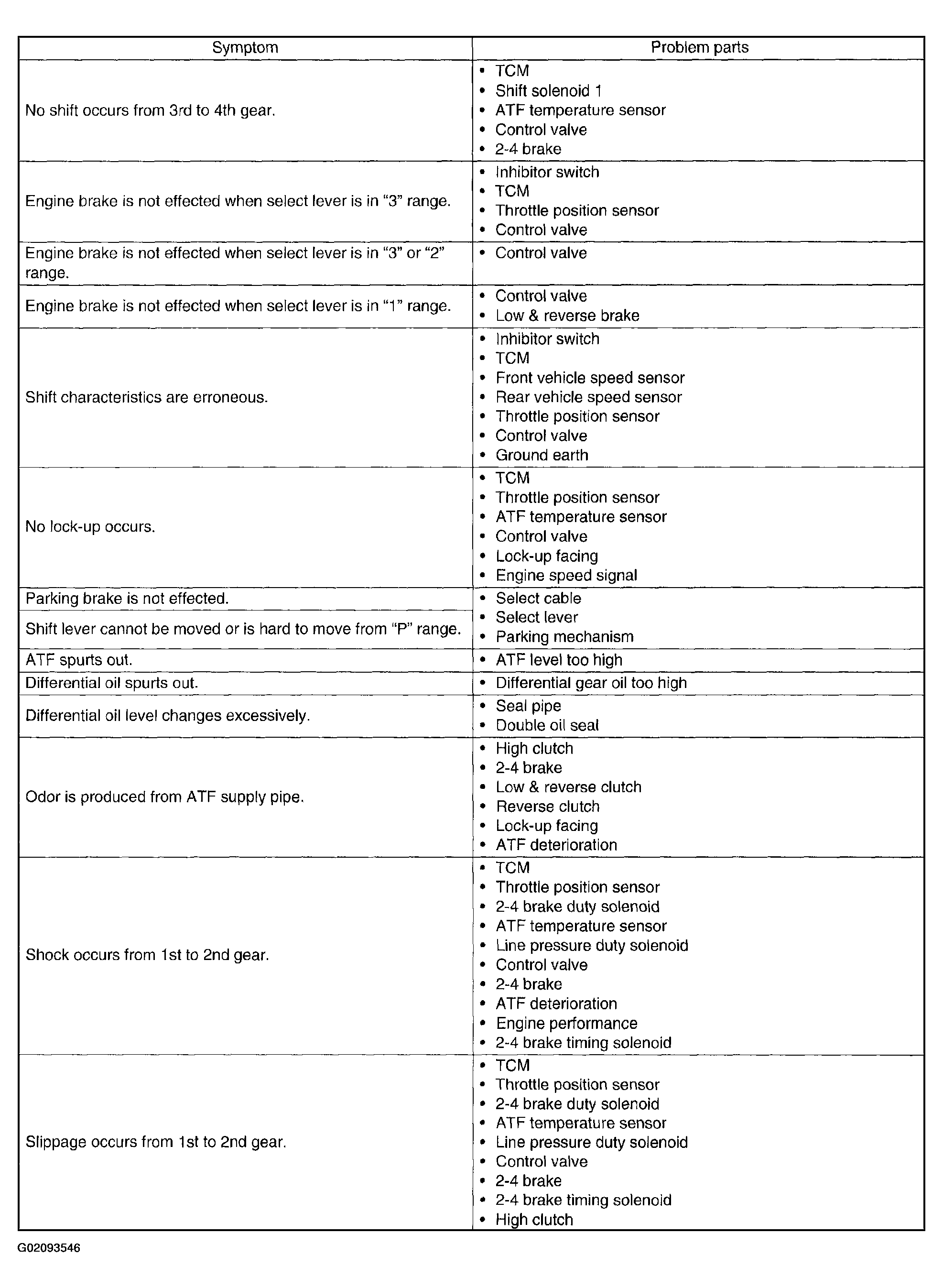

Fig 4: Symptom Related Inspection Chart (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

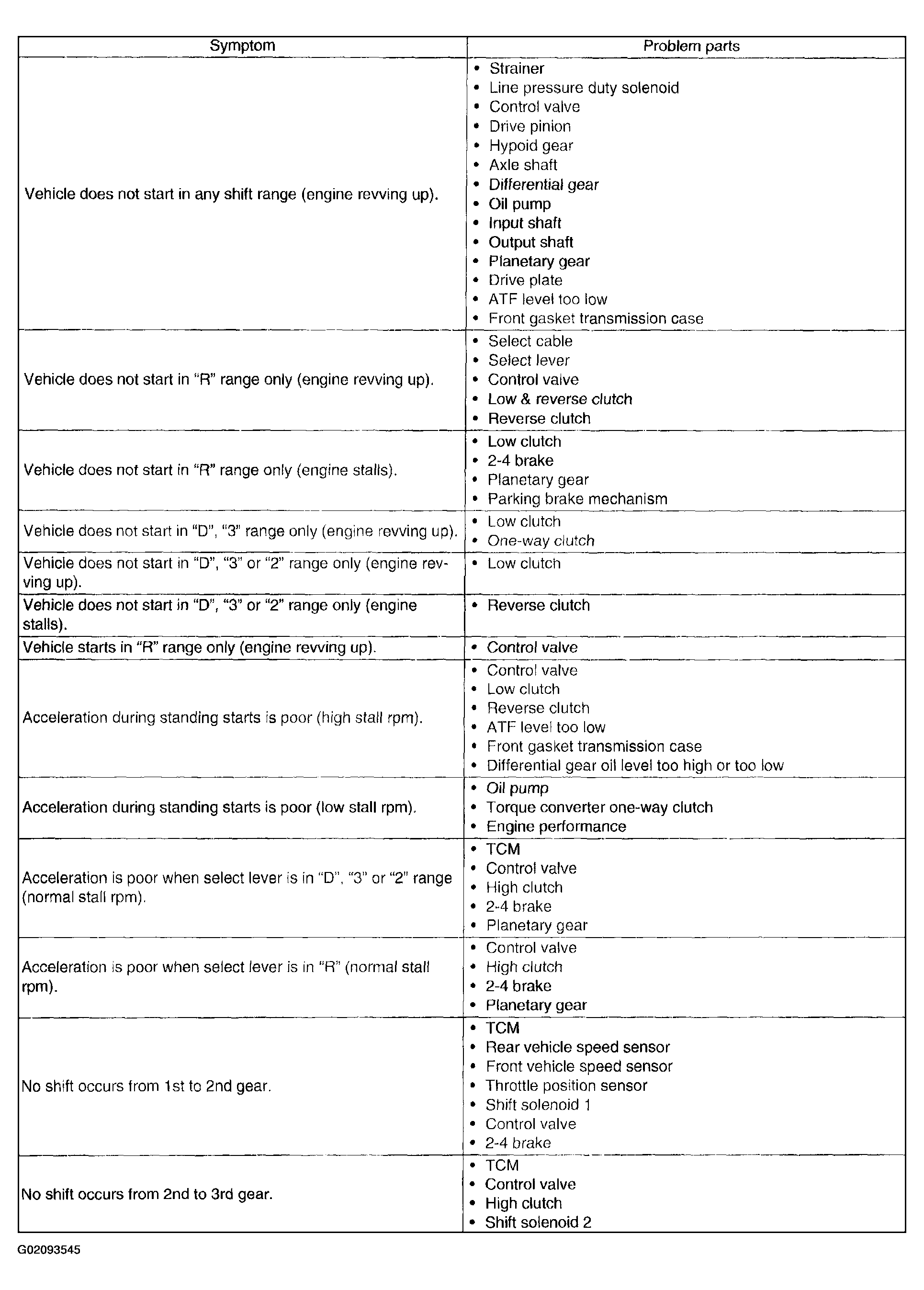

Fig 5: Symptom Related Inspection Chart (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
