Electrical Components Location: Location: Solenoid

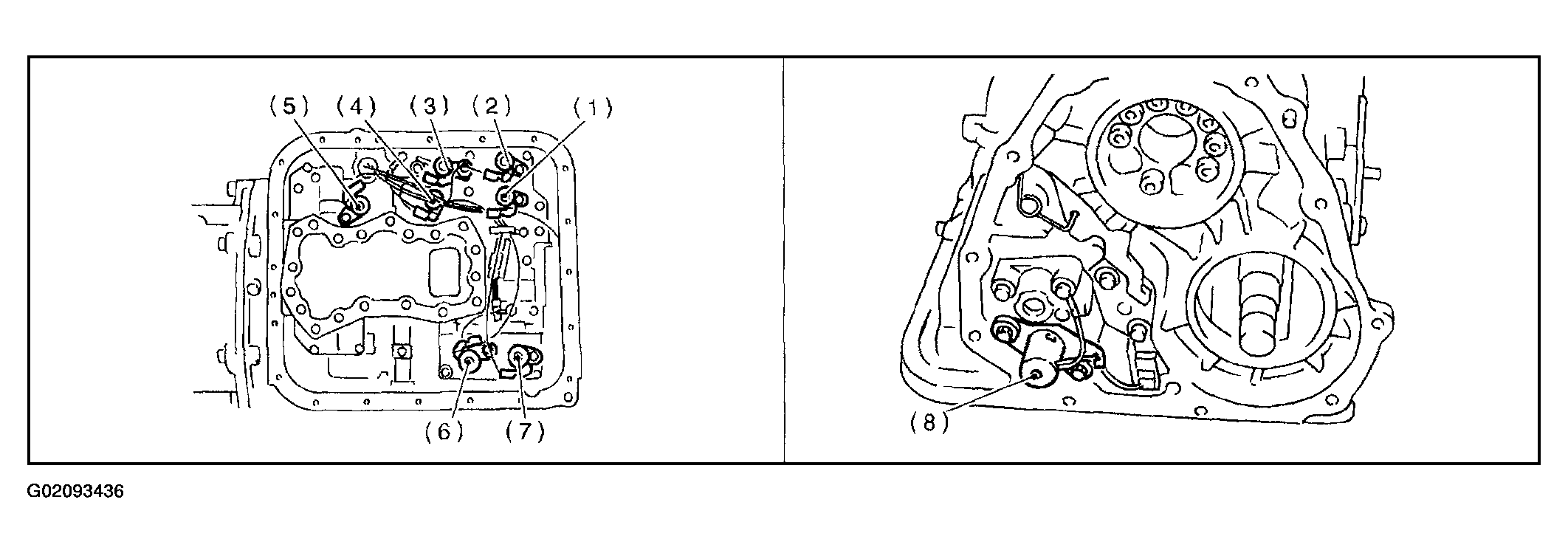

Fig 1: Locating Solenoid Electrical Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

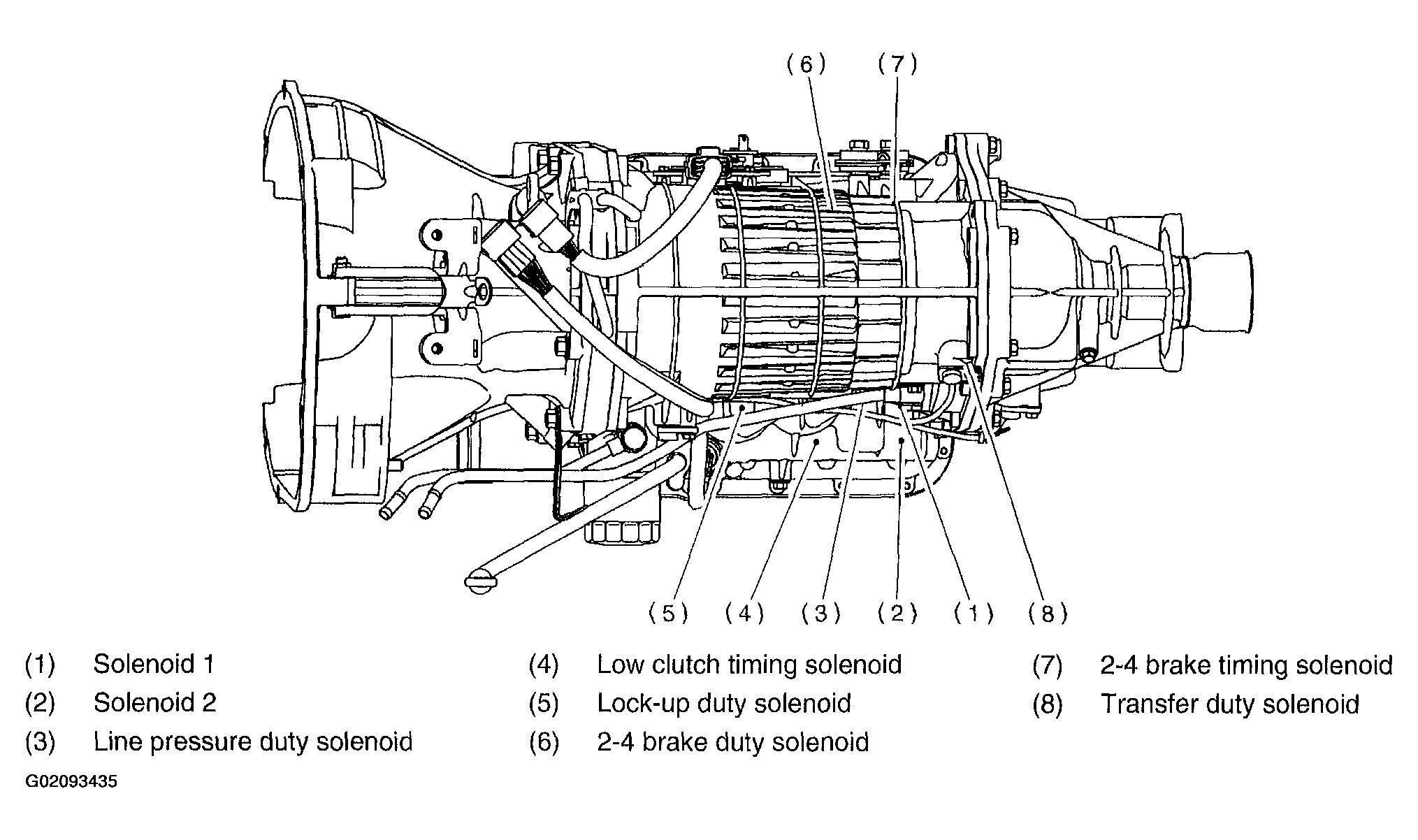

Fig 2: Locating Solenoid Electrical Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

LEGEND FOR FIG. 15

Number	Description
1	Soleniod 1
2	Solenoid 2
3	Line Pressure Duty Solenoid
4	Low Clutch Timing Solenoid
5	Lock-Up Duty Solenoid
6	2-4 Brake Duty Solenoid
7	2-4 Brake Timing Solenoid
8	Transfer Duty Solenoid
