Poor Ride Comfort

  1. Large rebound shock
  2. Rocking of the vehicle continues too long after running over bump and/or hump.
  3. Large shock in bumping

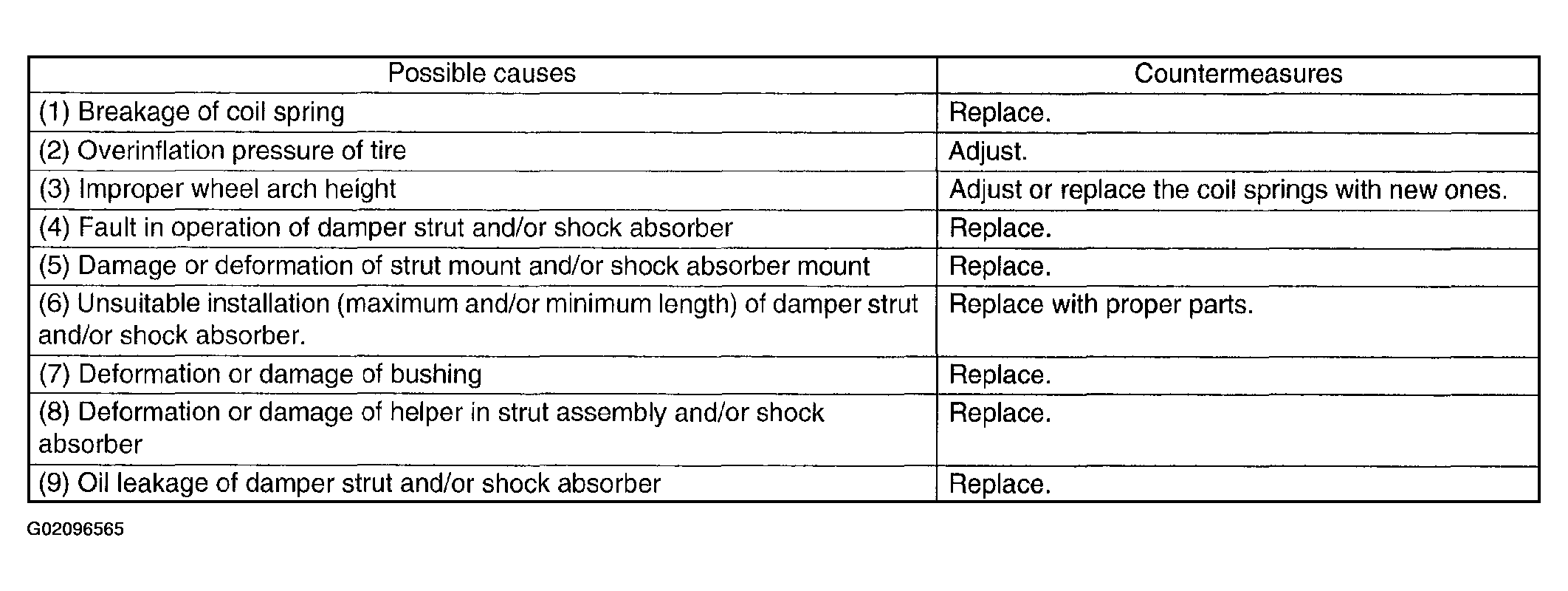

    Fig 1: Poor Ride Comfort Diagnostic Chart
    G02096565Courtesy of SUBARU OF AMERICA, INC.
