Removal & Installation: Sub-Frame: Removal

1. Lift-up the vehicle.
2. Remove the under cover.
3. Remove the bolt cover. See Fig 1.
4. Remove the clip. See Fig 2.
   NOTE: Loosen bolt (1) and leave a few threads caught, then remove the bolts in the order of (2), (3), (4), (5), and (6).
5. Remove the sub-frame. See Fig 3.

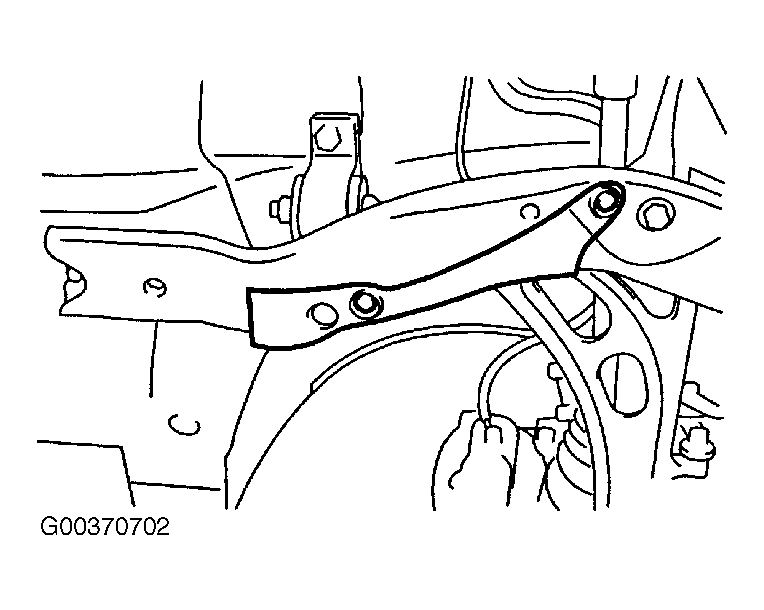

Fig 1: Removing Bolt Cover

Courtesy of SUBARU OF AMERICA, INC.

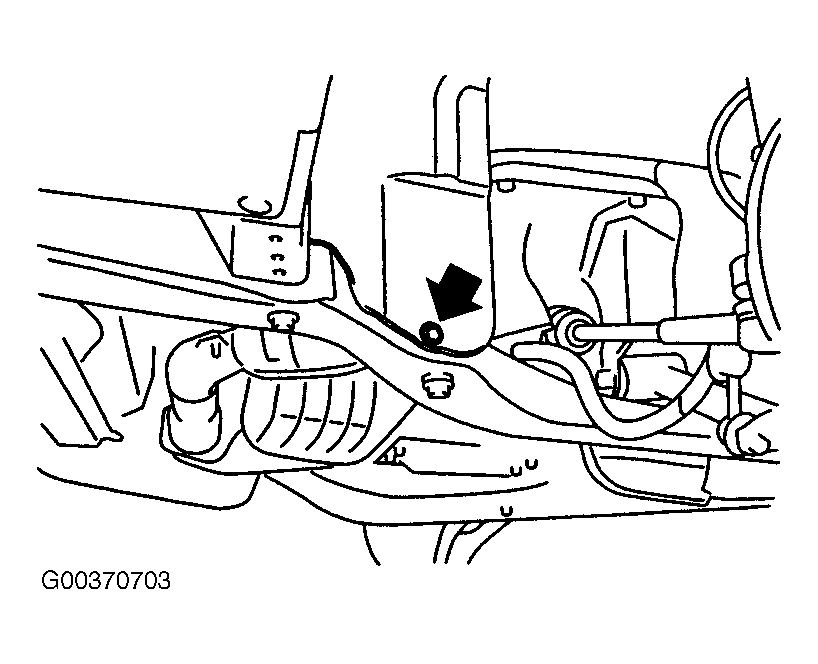

Fig 2: Removing Clip

Courtesy of SUBARU OF AMERICA, INC.

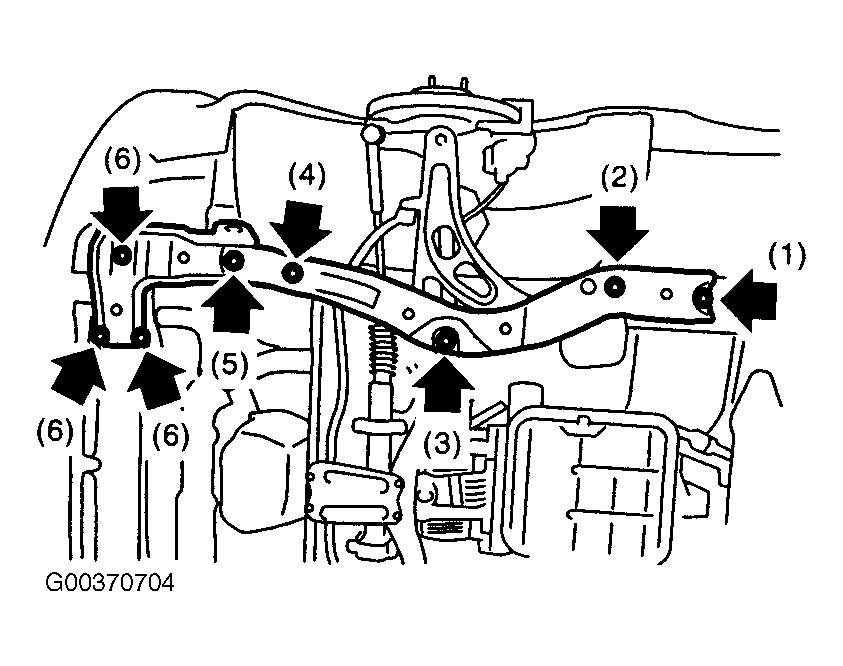

Fig 3: Removing Sub-Frame

Courtesy of SUBARU OF AMERICA, INC.
