Reservoir Tank: Installation

  1. Install the reservoir tank to bracket.
  2. Connect the pipes D to return hose and suction hose to oil pump.

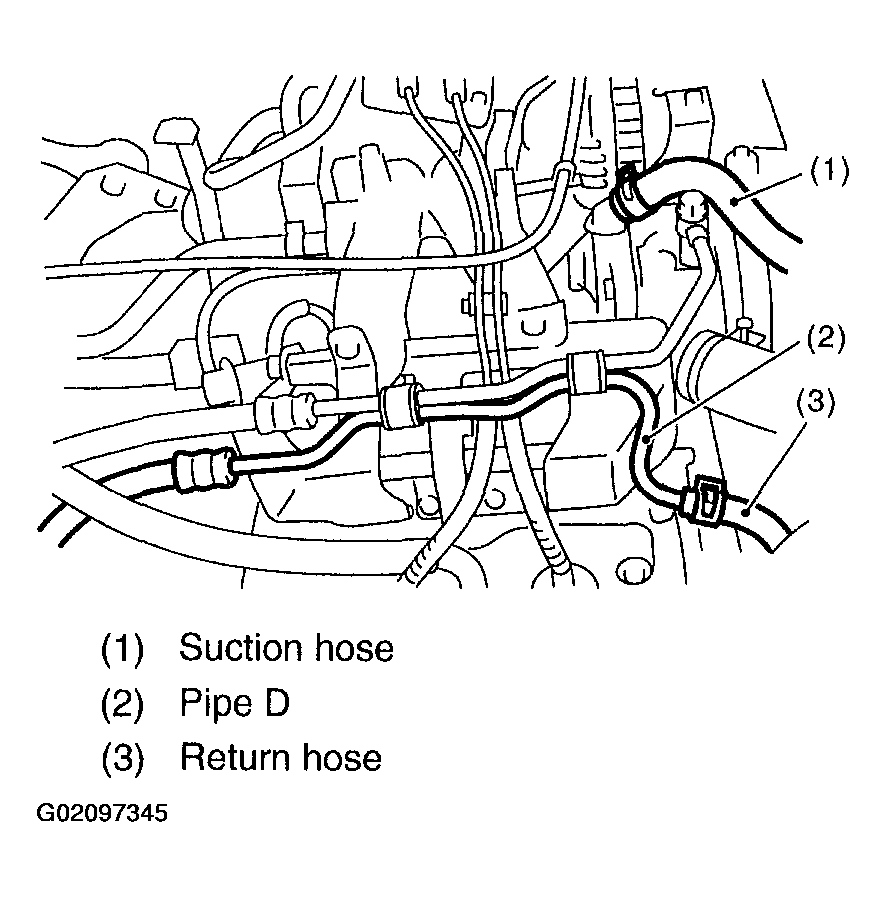

    Fig 1: Connecting Pipes D To Return Hose & Suction Hose To Oil Pump
    G02097345Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. Refer to POWER STEERING FLUID  .
