Oil Pump: Removal

Disconnect the ground cable from battery.
Remove the pulley belt cover.
Loosen the lock bolt and slider bolt, and then remove the power steering pump drive V-belt.

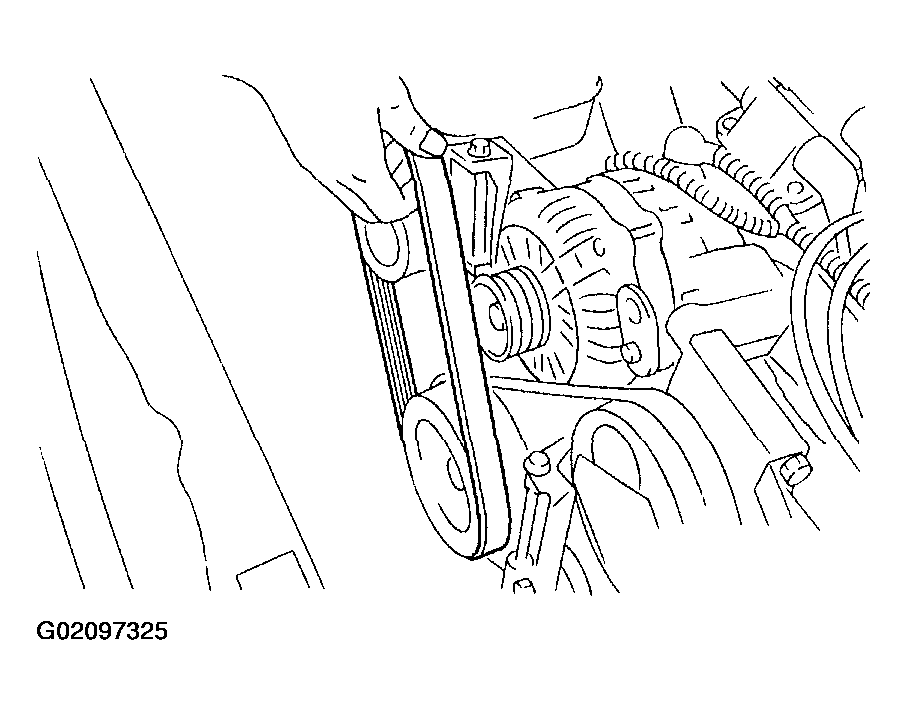

Fig 1: Removing Power Steering Pump Drive V-Belt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from power steering pump switch.
Disconnect the pipe C and suction hose from oil pump.
CAUTION:
- Do not allow fluid from the hose end to come into contact with pulley belt.
- To prevent foreign matter from entering the hose, cover the open ends of them with a clean cloth.

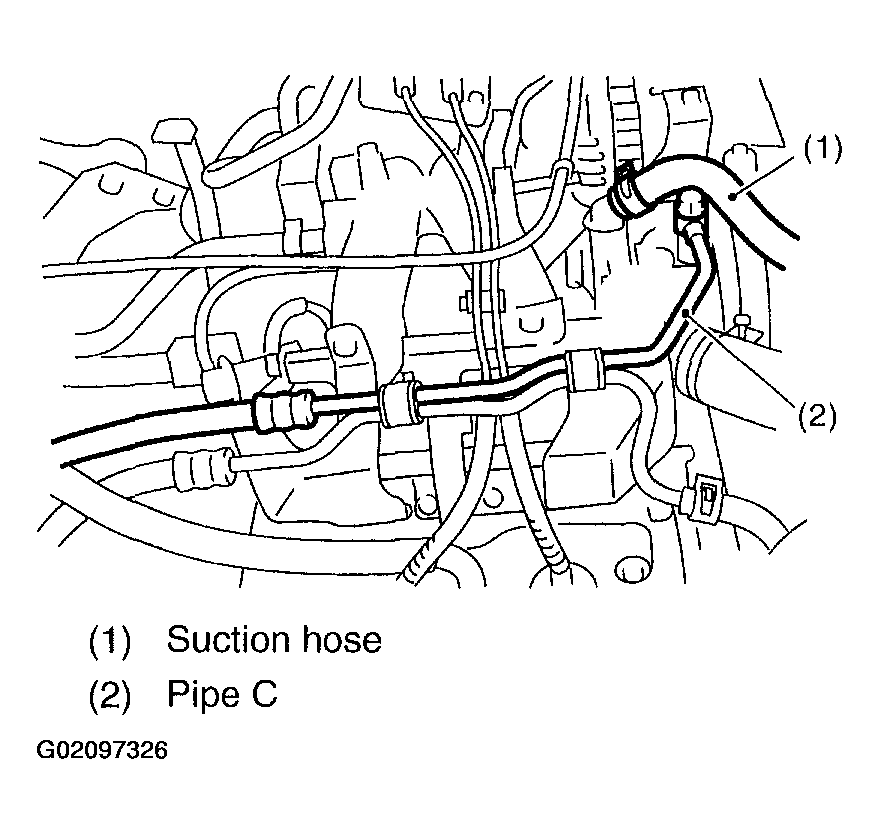

Fig 2: Disconnecting Pipe C & Suction Hose From Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install power steering pump bracket.

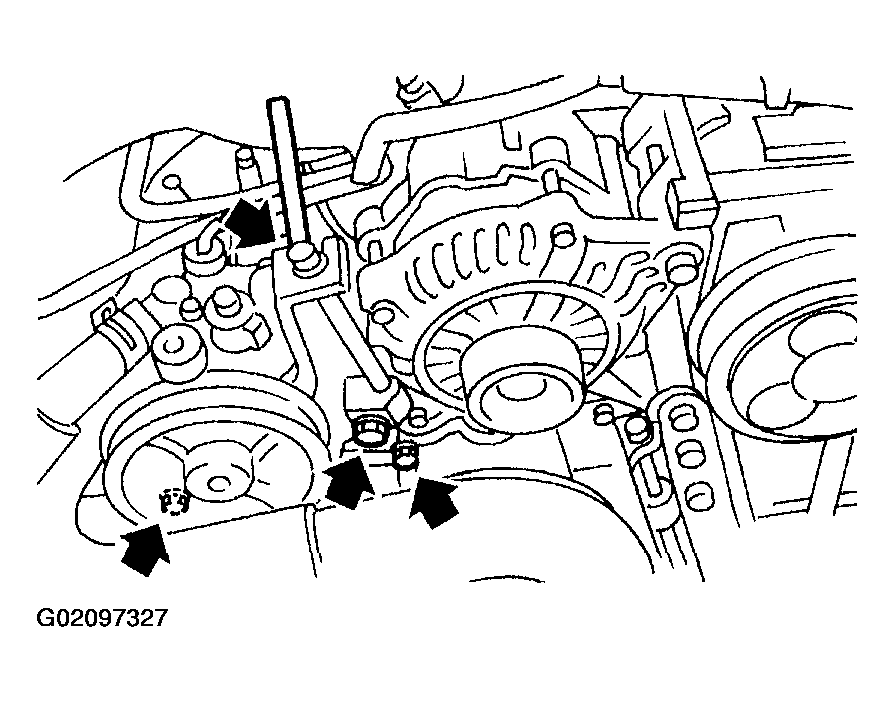

Fig 3: Removing Power Steering Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump bracket in a vise, remove the two bolts from front side of oil pump.
CAUTION: Do not place the oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.

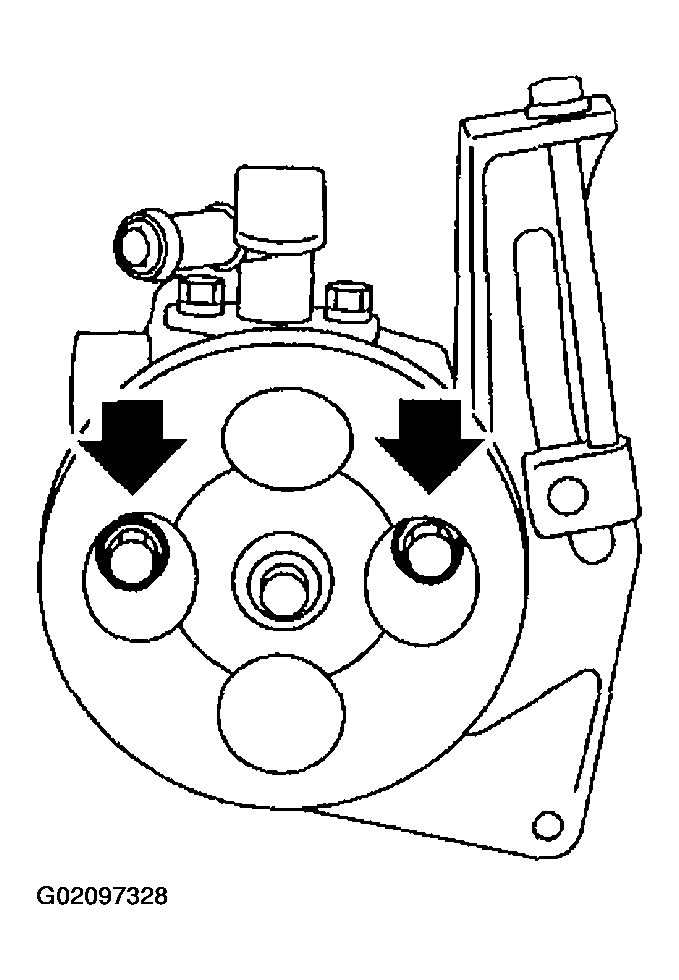

Fig 4: Removing Bolts From Front Side Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt from the rear side of oil pump.
Disassemble the oil pump and bracket by inserting a flat tip screwdriver as shown in the figure.

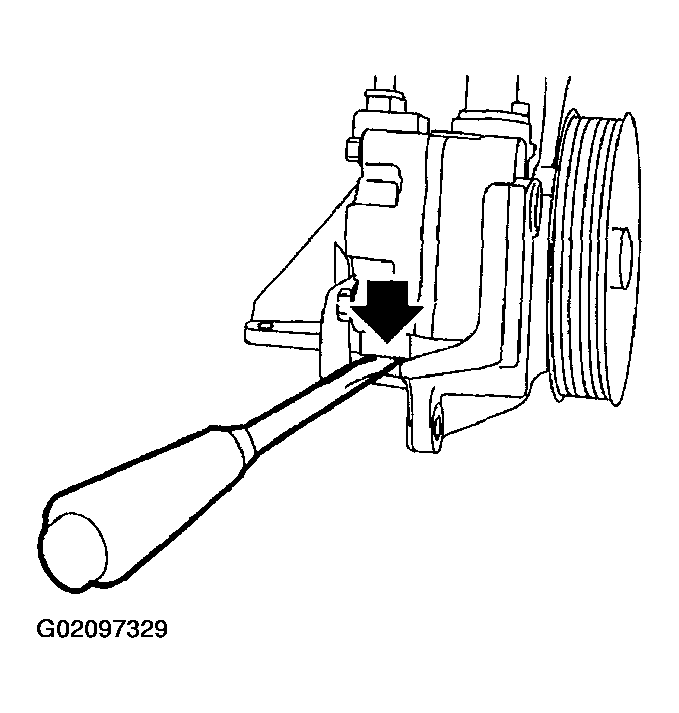

Fig 5: Disassembling Oil Pump & Bracket
Courtesy of SUBARU OF AMERICA, INC.
