Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer drive gear assembly. Refer to REMOVAL , Transfer Drive Gear.
  2. Remove the shift bracket.

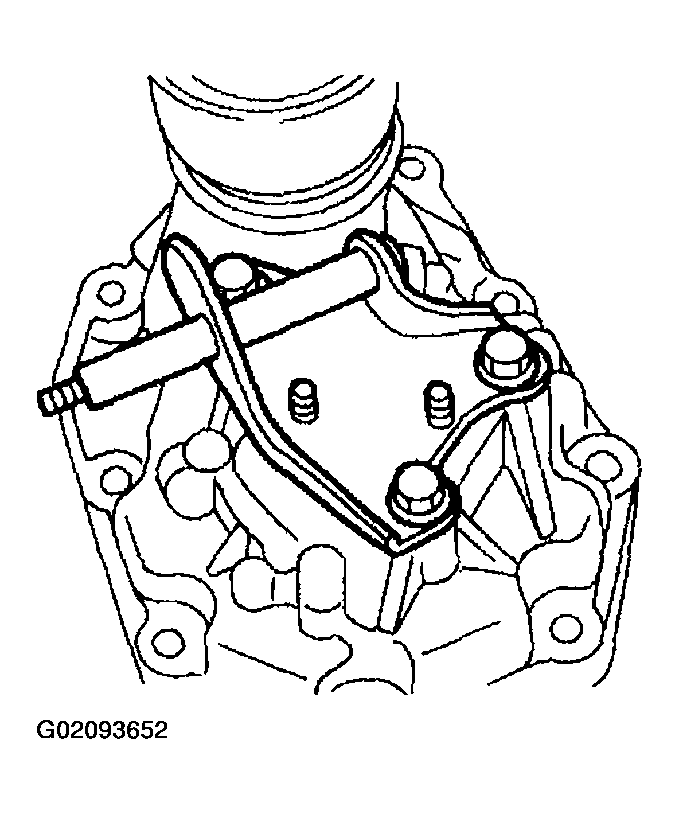

    3. Fig 1: Removing Shift Bracket
    G02093652Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil seal from extension case. Refer to OIL SEAL .
