Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Using the ST, insert the new oil seal to extension case. Refer to OIL SEAL .
  2. Install the shift bracket to extension case.
    1. Tightening torque:  24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

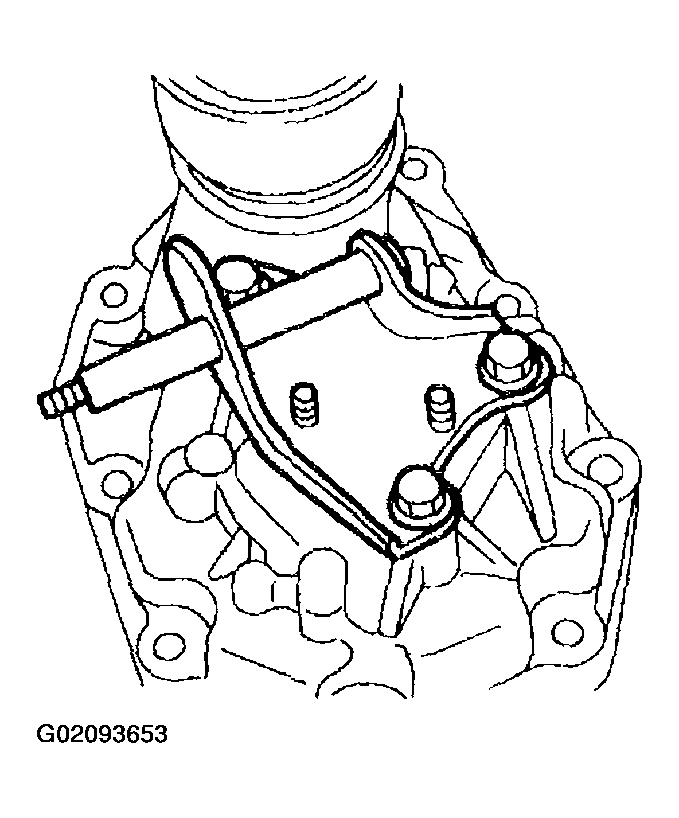

    3. Fig 1: Installing Shift Bracket To Extension Case
    G02093653Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer drive gear to extension case. Refer to INSTALLATION , Transfer Drive Gear.
