Transmission Case Assembly

WARNING: This page is about a different variant/trim than selected.

Drive pinion shim adjustment

Hypoid gear backlash

  1. 0.13 - 0.18 mm (0.0051 - 0.0071 in)

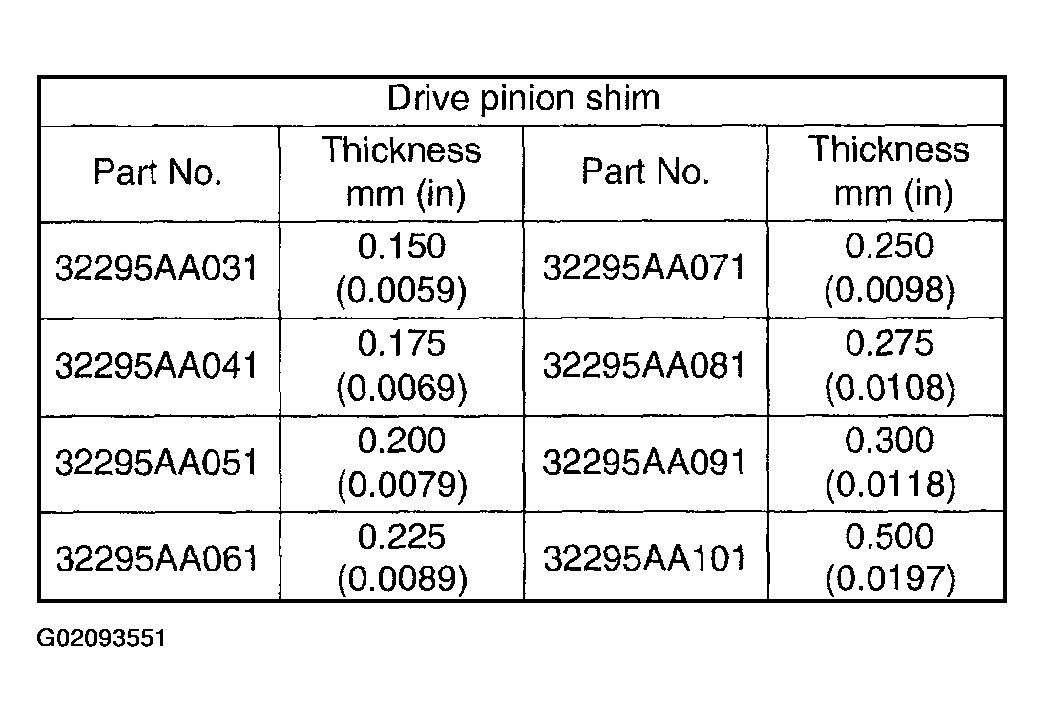

Fig 1: Drive Pinion Shim Specifications Chart
G02093551Courtesy of SUBARU OF AMERICA, INC.

Selection of main shaft rear plate

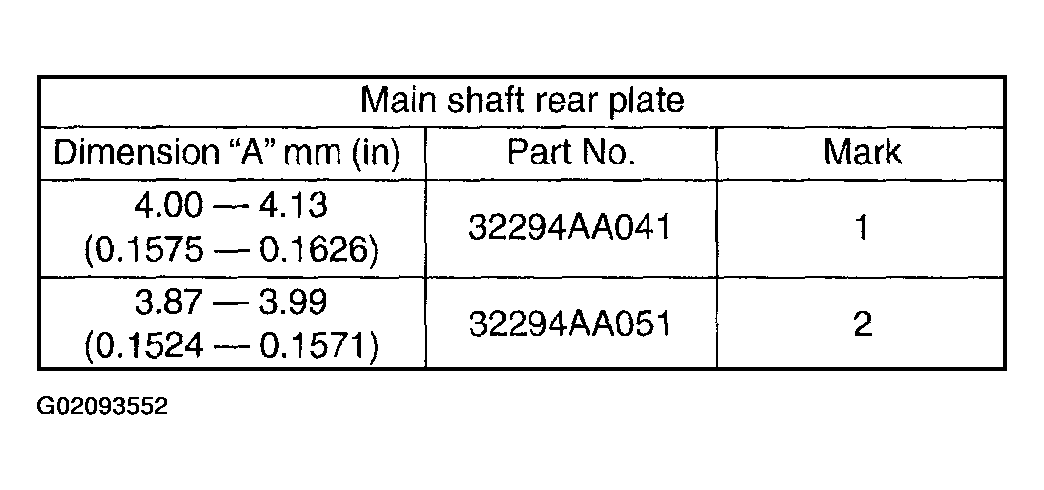

Fig 2: Main Shaft Rear Plate Specifications Chart
G02093552Courtesy of SUBARU OF AMERICA, INC.
