Main Shaft

WARNING: This page is about a different variant/trim than selected.

Snap ring (Outer-25) to synchronizer hub clearance

  1. 0.060 - 0.100 mm (0.0024 - 0.0039 in)

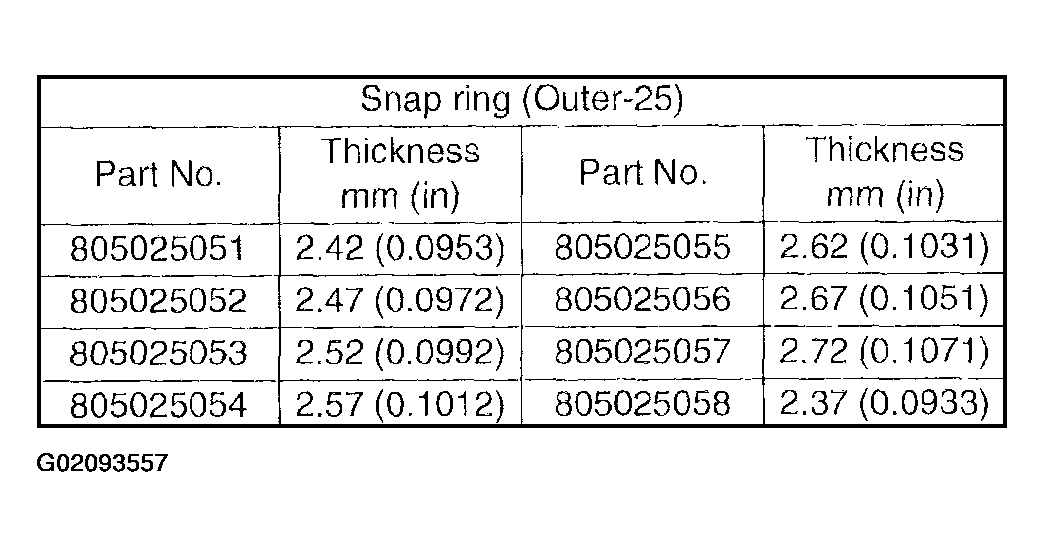

Fig 1: Main Shaft Snap Ring Specifications Chart (Outer-25)
G02093557Courtesy of SUBARU OF AMERICA, INC.
