Input Shaft Assembly

WARNING: This page is about a different variant/trim than selected.

Snap ring (Outer-28) to ball bearing clearance

  1. 0 - 0.12 mm (0 - 0.0047 in)

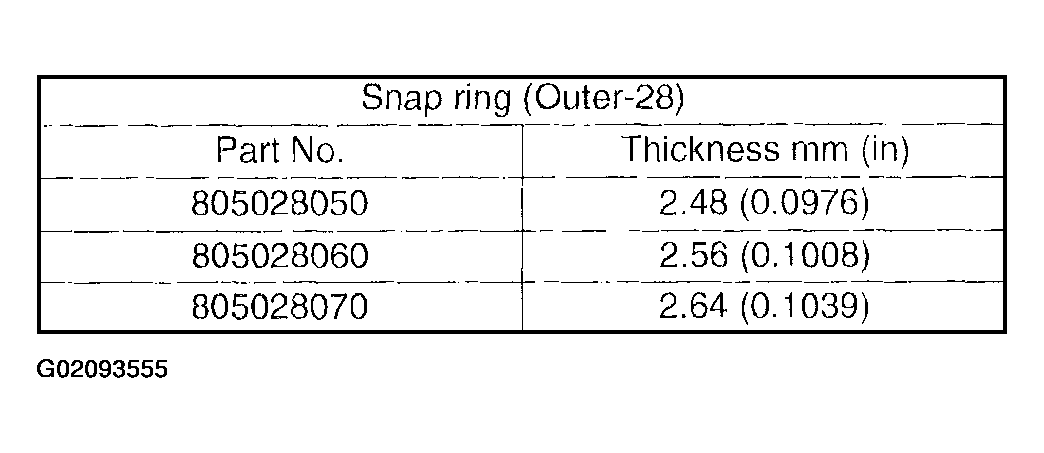

Fig 1: Input Shaft Assembly Snap Ring Specifications Chart (Outer-28)
G02093555Courtesy of SUBARU OF AMERICA, INC.

Snap ring (Inner-68) to bearing clearance

  1. 0 - 0.12 mm (0 - 0.0047 in)

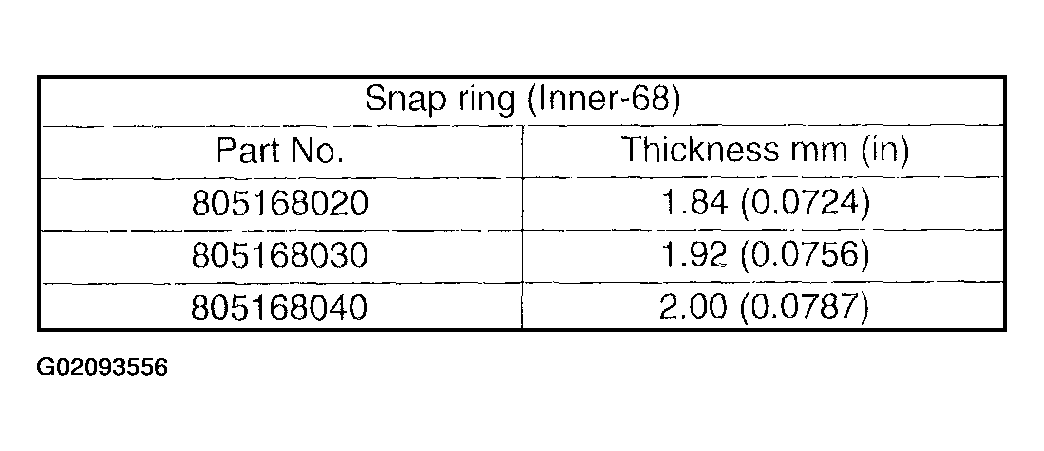

Fig 2: Input Shaft Assembly Snap Ring Specifications Chart (Inner-68)
G02093556Courtesy of SUBARU OF AMERICA, INC.
