Front Differential

WARNING: This page is about a different variant/trim than selected.

Bevel gear to pinion backlash

  1. 0.13 - 0.18 mm (0.0051 - 0.0071 in)

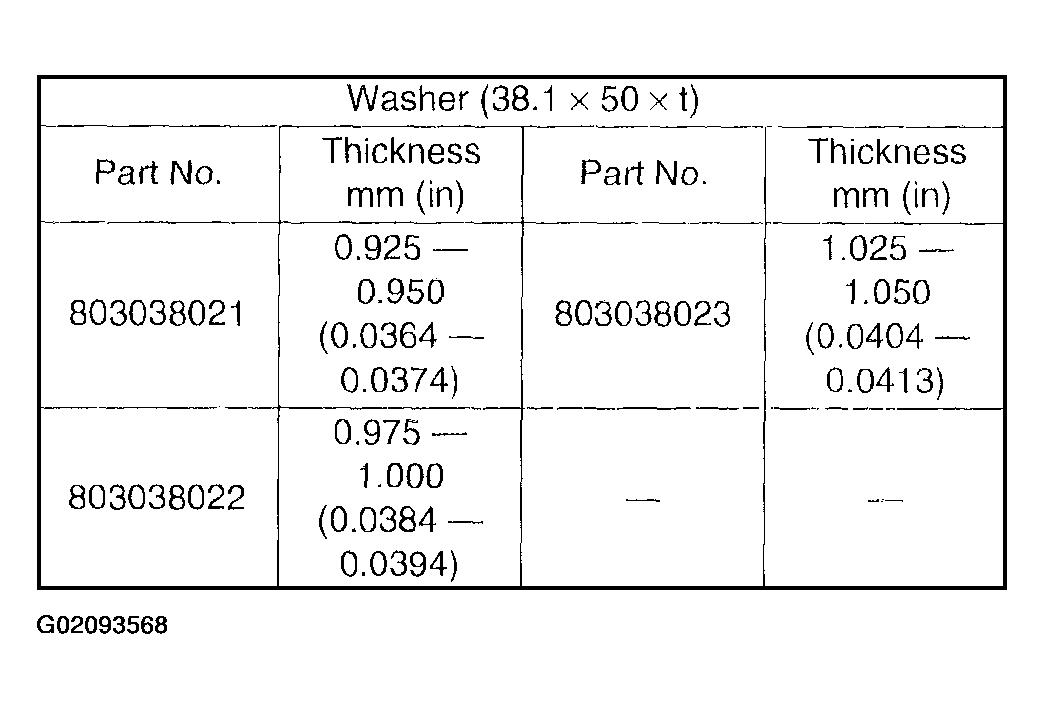

Fig 1: Washer Specifications Chart
G02093568Courtesy of SUBARU OF AMERICA, INC.
