Drive Pinion Assembly

Preload adjustment of thrust bearing

1. Starting torque
2. 0.3 - 0.8 N.m (0.03 - 0.08 kgf-m, 0.2 - 0.6 ft-lb)

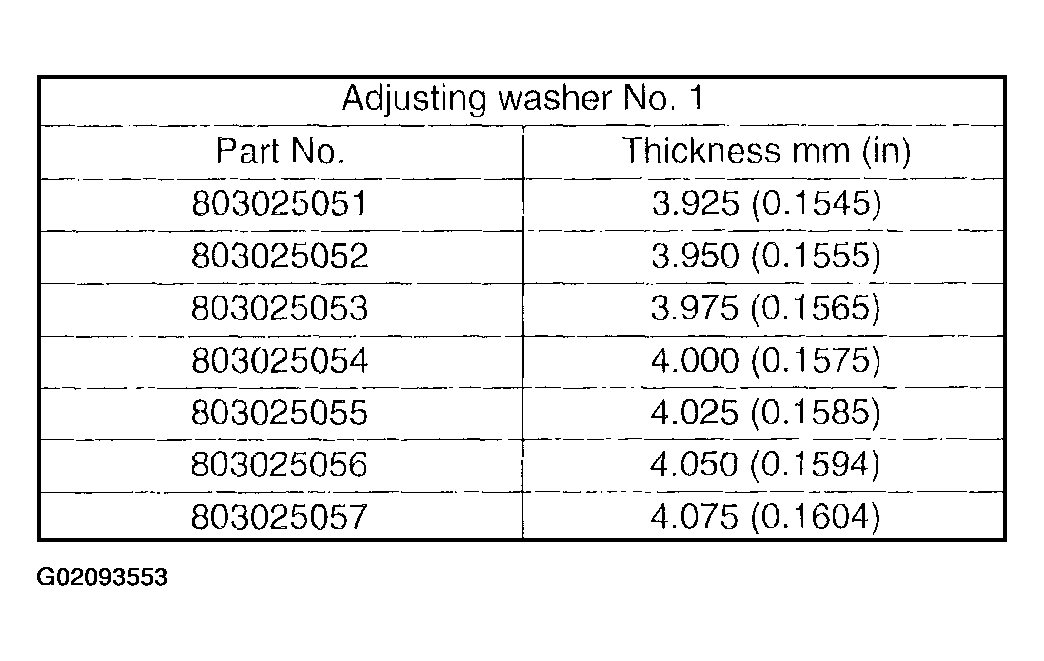

Fig 1: Adjusting Washer No. 1 Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

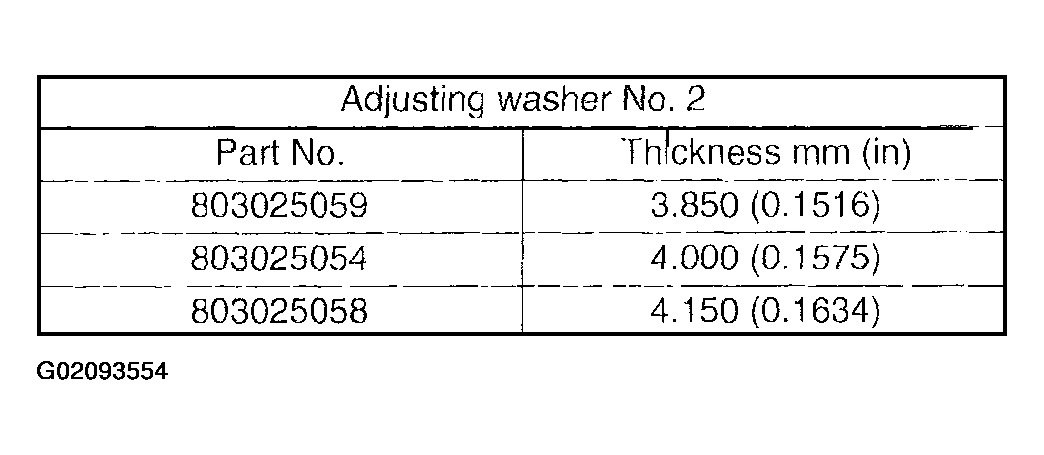

Fig 2: Adjusting Washer No. 2 Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.
