Transfer Case And Extension

WARNING: This page is about a different variant/trim than selected.

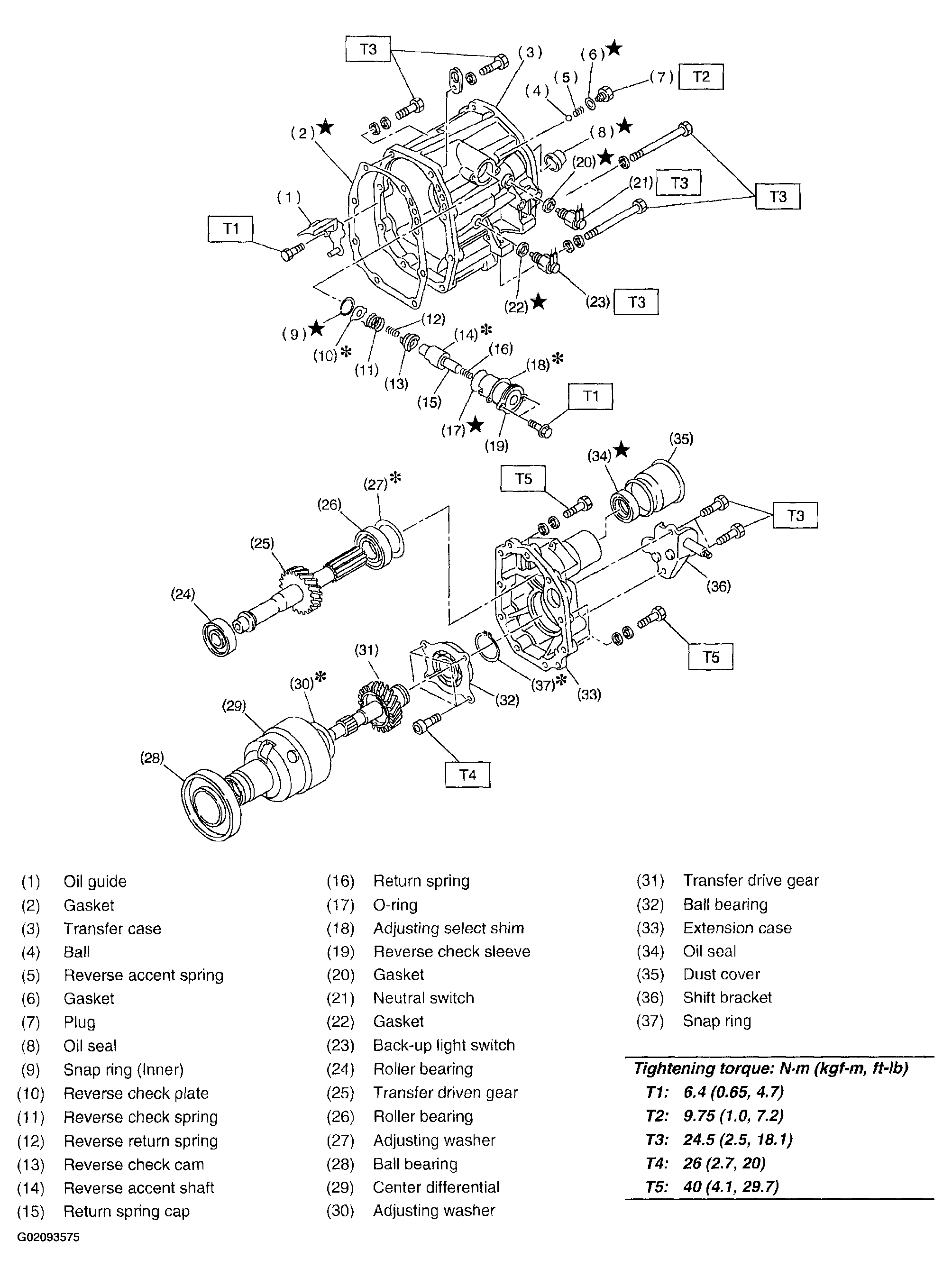

Fig 1: Exploded View Of Transfer Case & Extension With Torque Specifications
G02093575Courtesy of SUBARU OF AMERICA, INC.
