Side Retainer

WARNING: This page is about a different variant/trim than selected.
NOTE: Replace the oil seal and O-ring after adjustment of drive pinion gear backlash and tooth contact.
  1. Remove the O-ring.

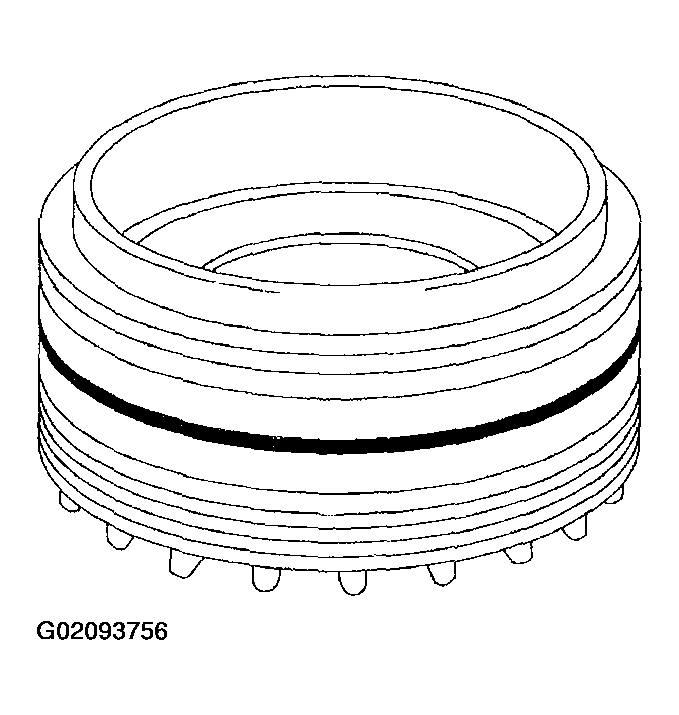

    2. Fig 1: Removing O-Ring
    G02093756Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the oil seal.

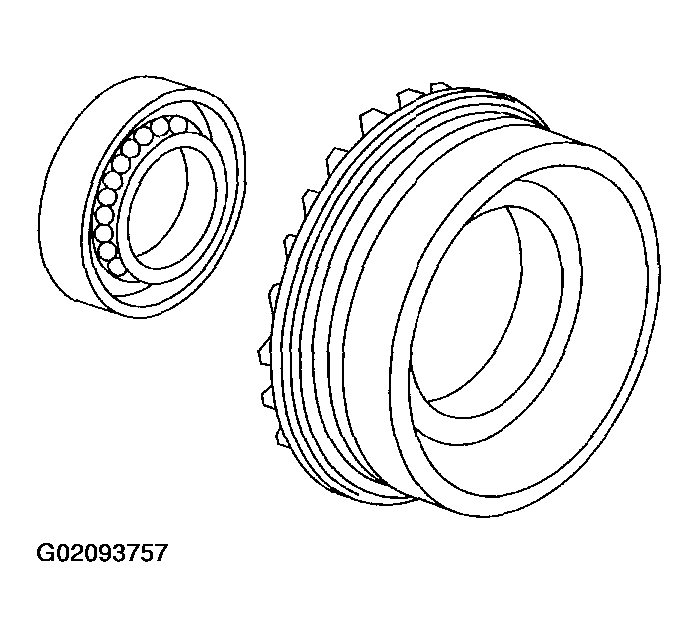

    3. Fig 2: Removing Oil Seal
    G02093757Courtesy of SUBARU OF AMERICA, INC.
