Side Retainer

WARNING: This page is about a different variant/trim than selected.
  1. Install a new oil seal.

    ST 18675AA000 DIFFERENTIAL OIL SEAL INSTALLER

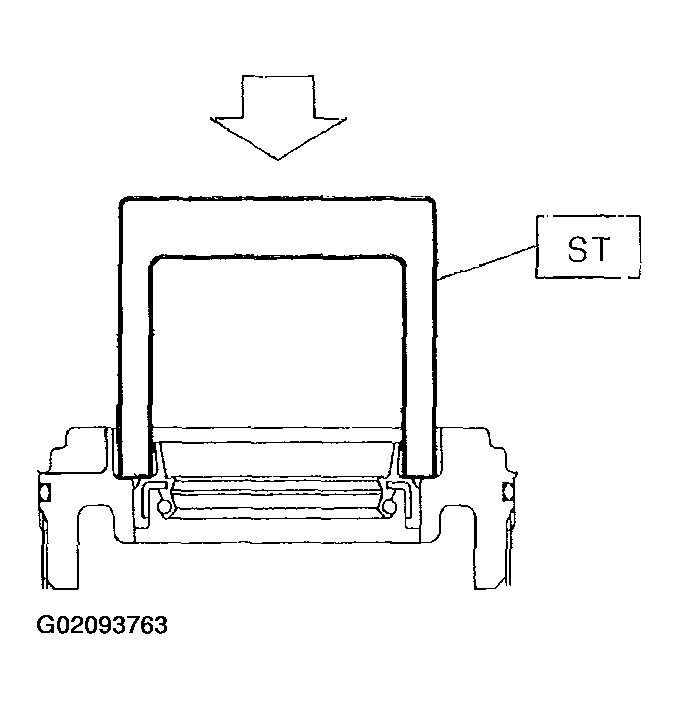

    2. Fig 1: Installing Oil Seal
    G02093763Courtesy of SUBARU OF AMERICA, INC.
  2. Install a new O-ring.
    NOTE: Do not stretch or damage the O-ring.

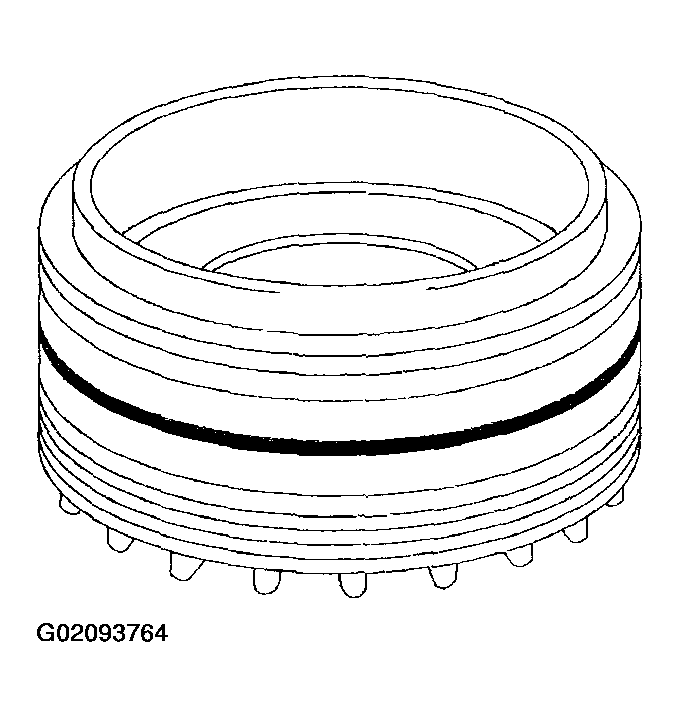

    3. Fig 2: Installing O-Ring
    G02093764Courtesy of SUBARU OF AMERICA, INC.
