Section 150 (Cooling System): Thermostat: Installation

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat in the water pump, and then install the thermostat cover.
    NOTE:
    • When installing the thermostat, use a new gasket.
    • The thermostat must be installed with the jiggle pin (A) facing to front side.

    Tightening torque:

    6.5 N.m (0.66 kgf-m, 4.8 ft-lb)

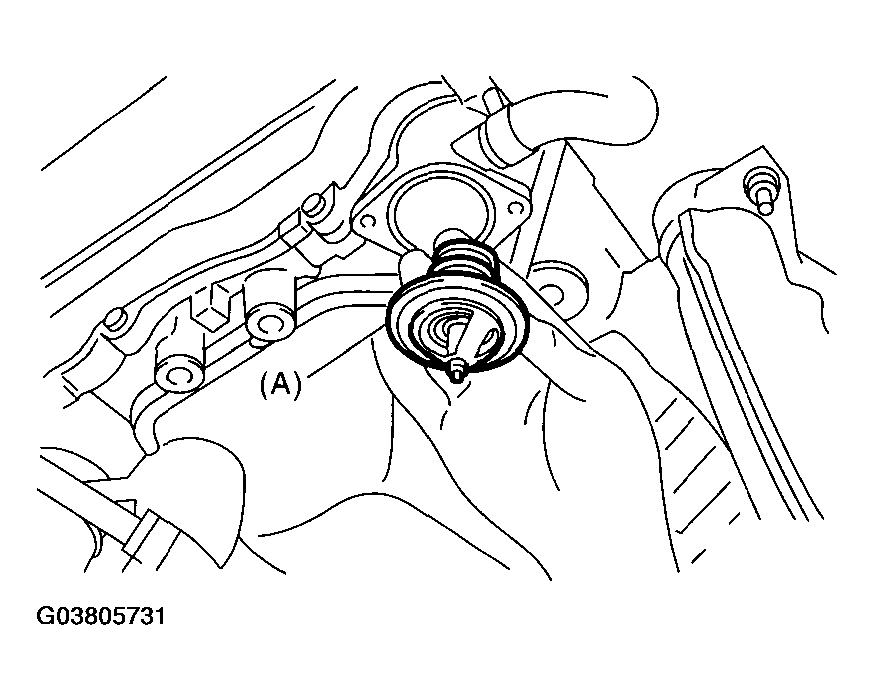

    Fig 1: Installing Thermostat With Jiggle Pin Facing To Front Side
    G03805731Courtesy of SUBARU OF AMERICA, INC.
  2. Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT, REPLACEMENT , Engine Coolant. >
