Front Exhaust Pipe: Removal

Disconnect the ground cable from battery.

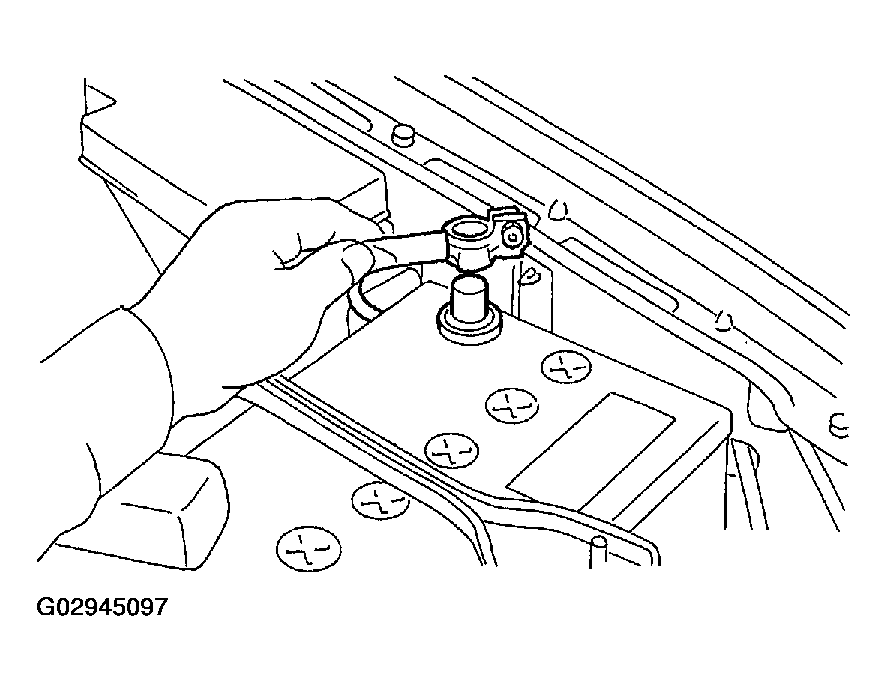

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the front oxygen (A/F) sensor connector.

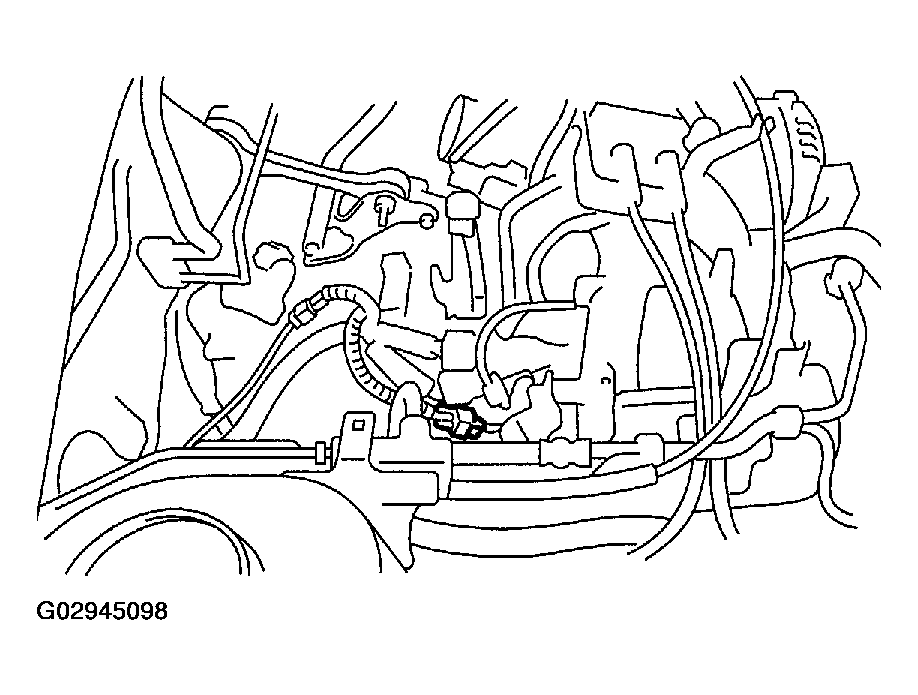

Fig 2: Disconnecting Front Oxygen (A/C) Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the rear oxygen sensor connector.

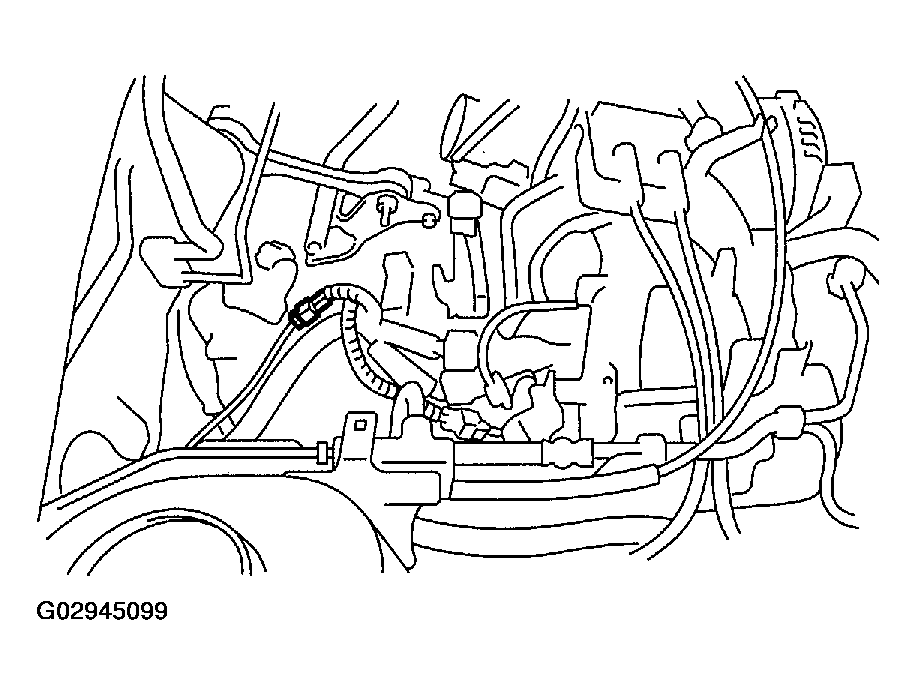

Fig 3: Disconnecting Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Separate the front and center exhaust pipe assembly from rear exhaust pipe.
CAUTION: Be careful, the exhaust pipe is hot.

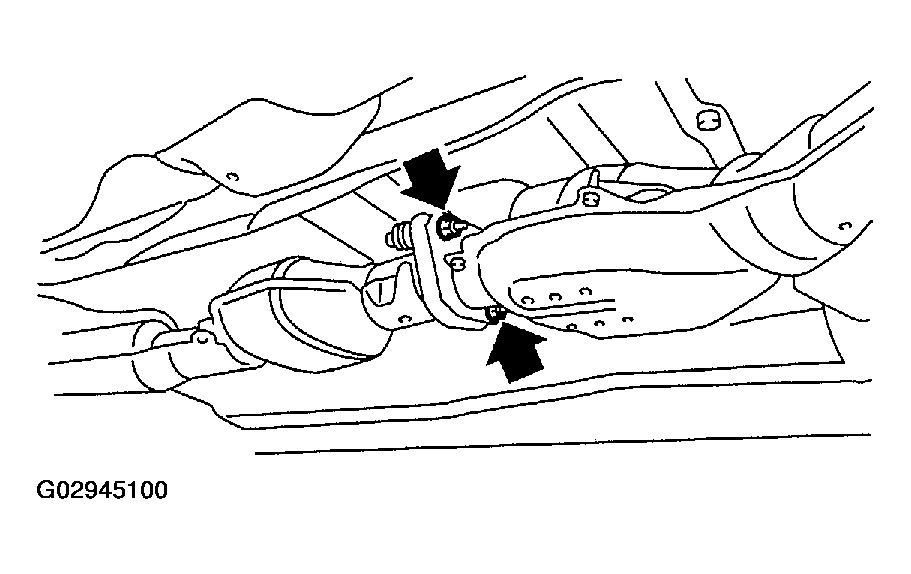

Fig 4: Separating Front & Center Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the under cover.
Remove the nuts which hold front exhaust pipe onto cylinder heads.

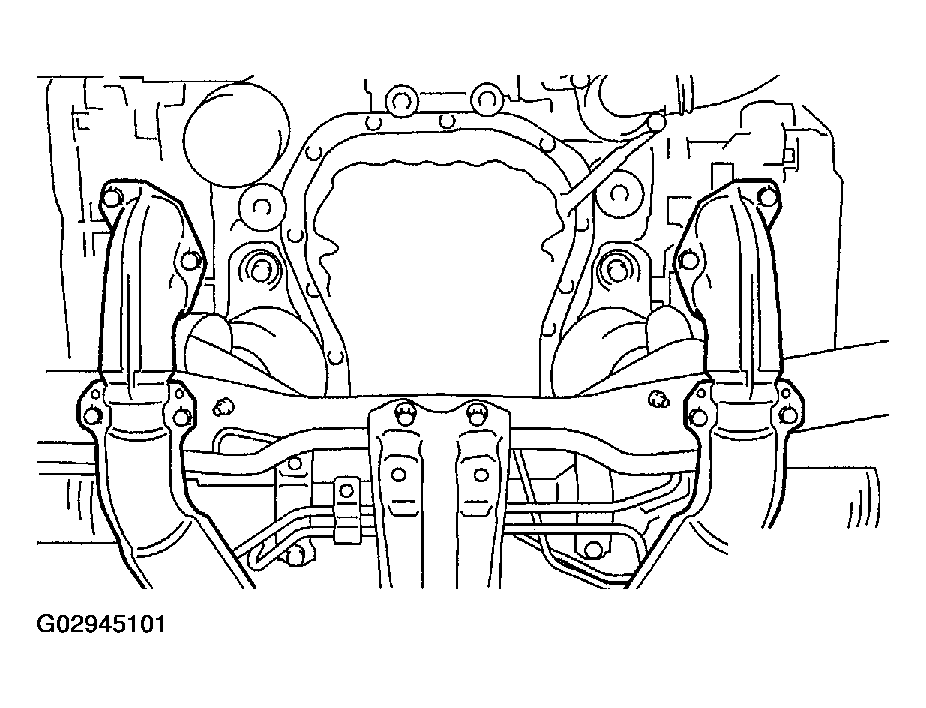

Fig 5: Removing Exhaust Pipe Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs front and center exhaust pipe assembly to hanger bracket.

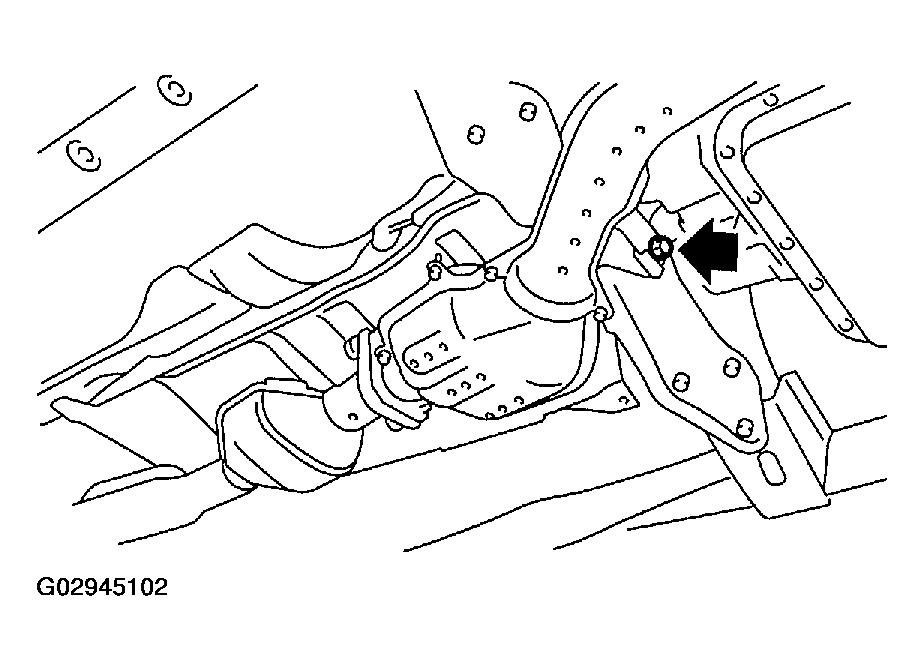

Fig 6: Removing Front & Center Exhaust Pipe Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the front and center exhaust pipe assembly from vehicle.
CAUTION:
- Be careful not to let the front and center exhaust pipe assembly fall off when removing as it is quite heavy.
- After removing the front and center exhaust pipe assembly, do not apply excessive pulling force on the rear exhaust pipe.
Separate the front exhaust pipe from center exhaust pipe.

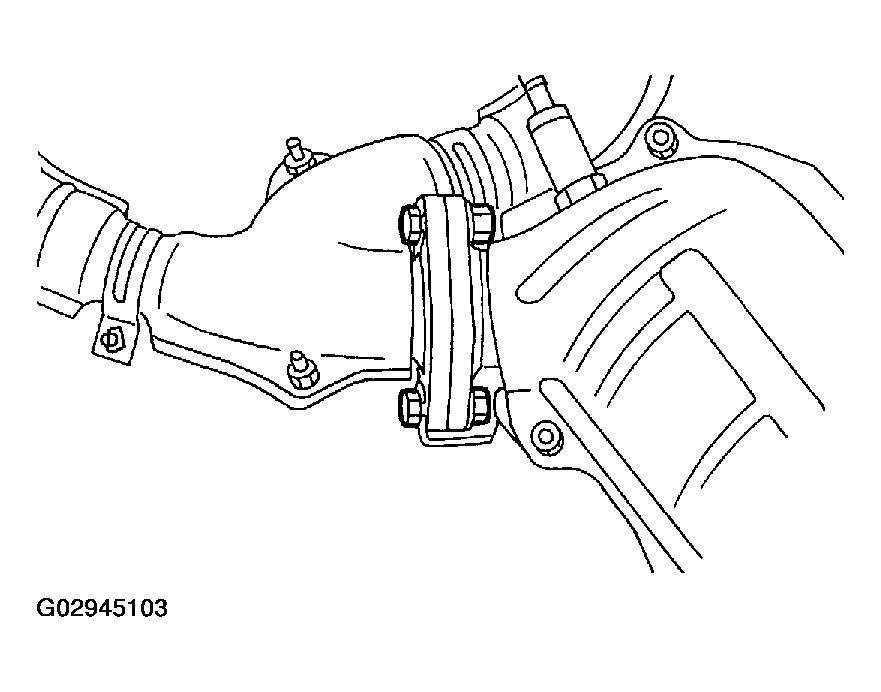

Fig 7: Separating Front Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the front oxygen (A/F) sensor and the rear oxygen sensor. Refer to REMOVAL , Front Oxygen (A/F) Sensor and REMOVAL , Rear Oxygen Sensor.
