Cooling Fan: Cooling: Thermostat: Installation

Install the thermostat in the water pump, and then install the thermostat cover together with a gasket.
NOTE:
- When reinstalling the thermostat, use a new gasket.
- The thermostat must be installed with the jiggle pin (A) facing to front side.
Tightening torque:
1. 6.5 N.m (0.65 kgf-m, 4.7 ft-lb)

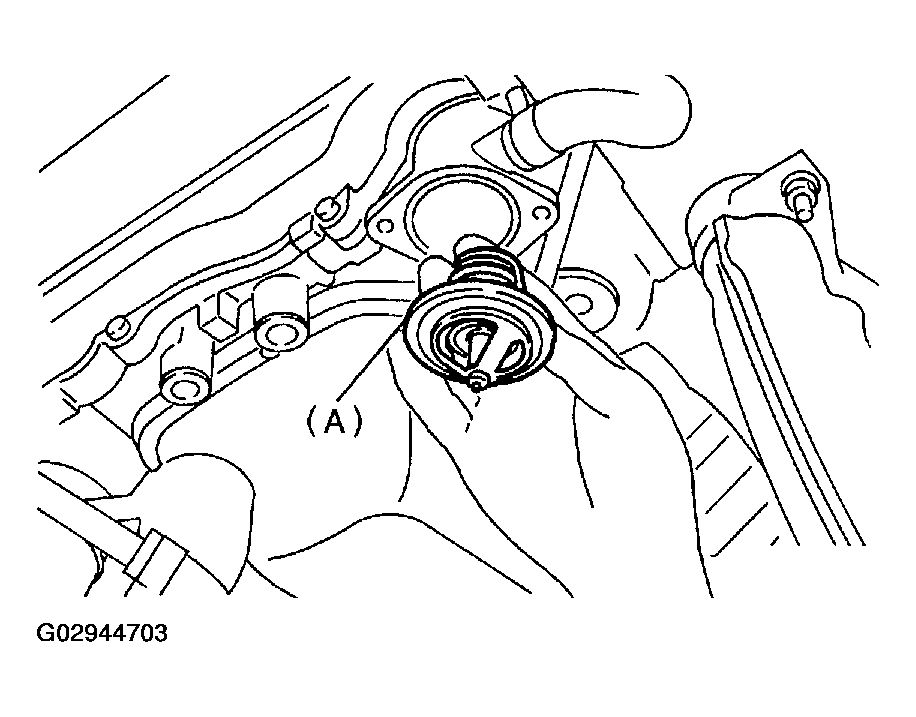

Fig 1: Installing Thermostat
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. Refer to FILLING OF ENGINE COOLANT , Engine Coolant.
