Horn System: Horn: Inspection

With 12 V direct current supplied between horn terminal and case ground, check that the horn sounds properly.

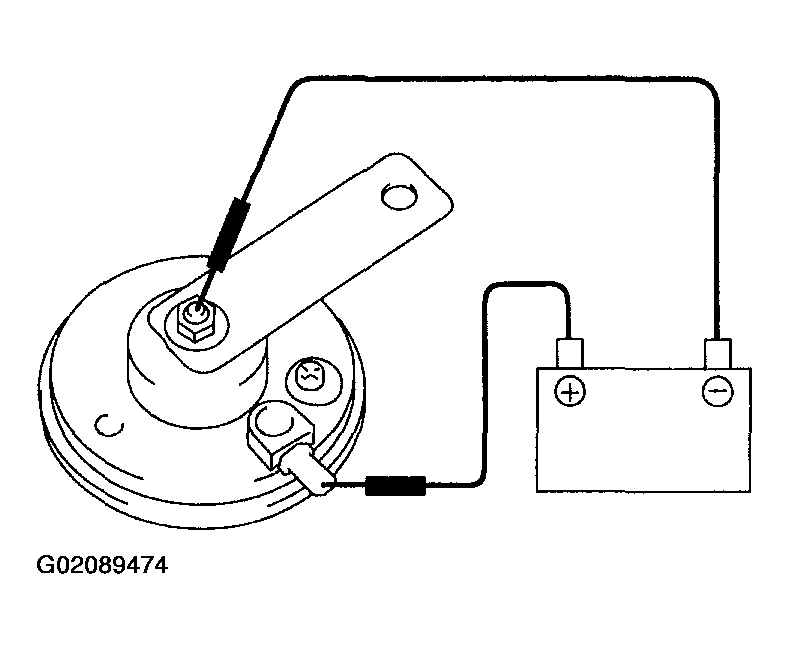

Fig 1: Checking Horn Terminal & Case Ground

Courtesy of SUBARU OF AMERICA, INC.
