Horn Switch: Inspection

Measure the horn switch resistance.

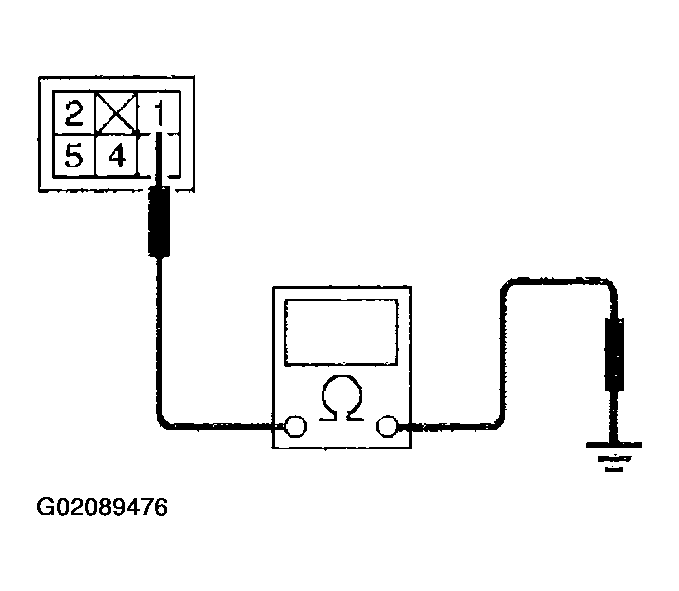

Fig 1: Measuring Horn Switch Resistance
G02089476Courtesy of SUBARU OF AMERICA, INC.

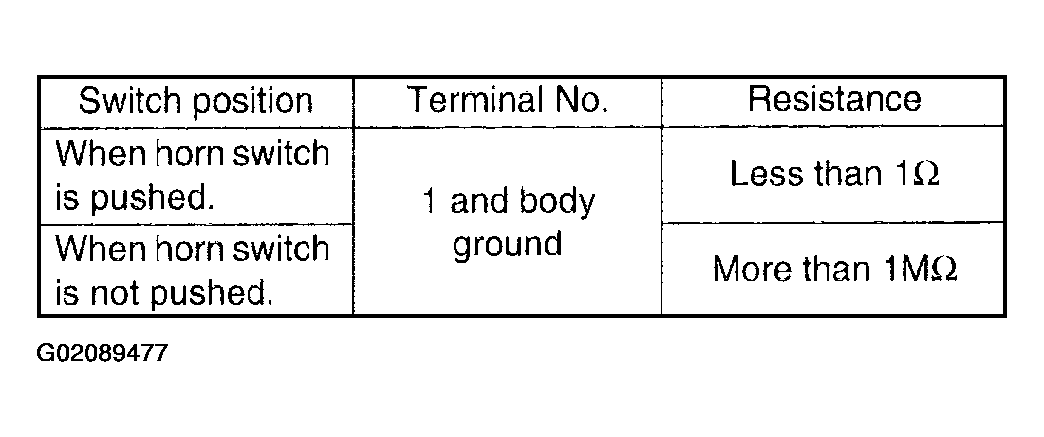

Fig 2: Horn Switch Resistance Chart
G02089477Courtesy of SUBARU OF AMERICA, INC.
