Home >> Subaru >> 2003 >> Forester XS, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Driver Info - Mechanism & Function >> Combination Meter >> Speedometer >> Specifications

Combination Meter: Speedometer: Specifications

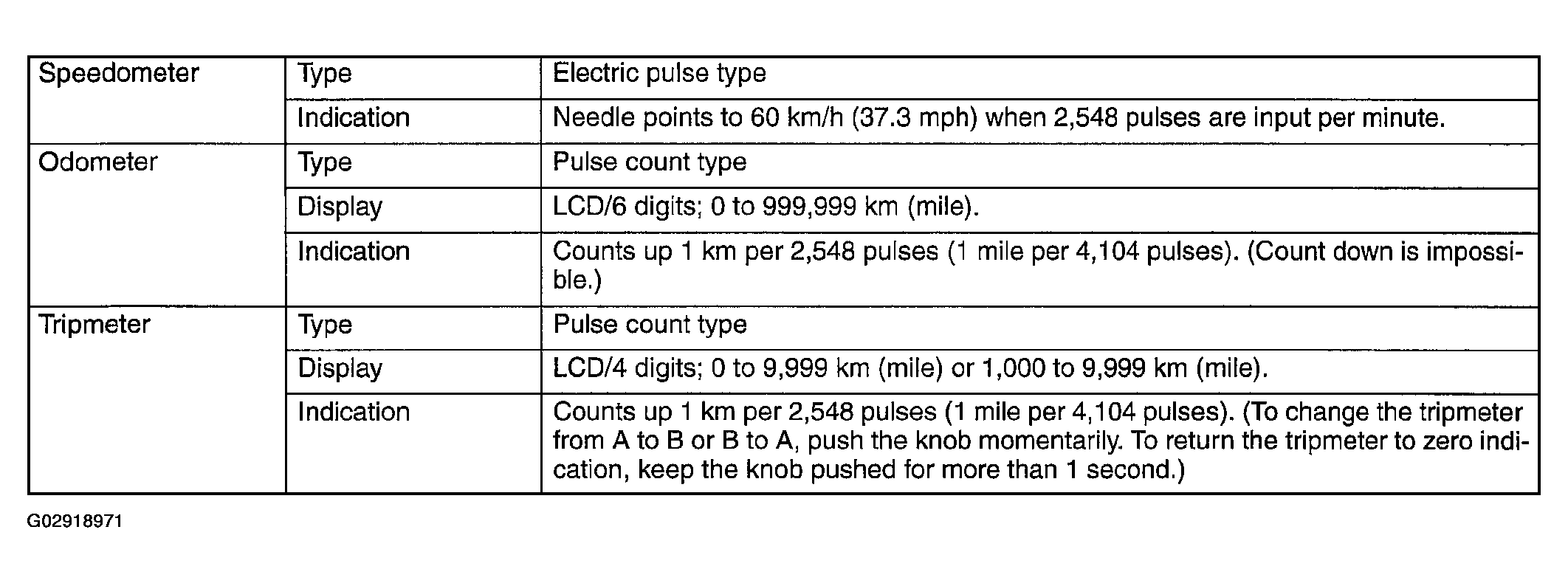

Fig 1: Speedometer Specifications Table

G02918971

Courtesy of SUBARU OF AMERICA, INC.
