Total Preload

Using a gauge, check the turning resistance increase.

1. Turning resistance increase:  2.9 - 10.8 N (0.3 - 1.1 kgf, 0.7 - 2.4 lb)

If the increase of resistance is not within the specification, adjust the side bearing retainer shims.

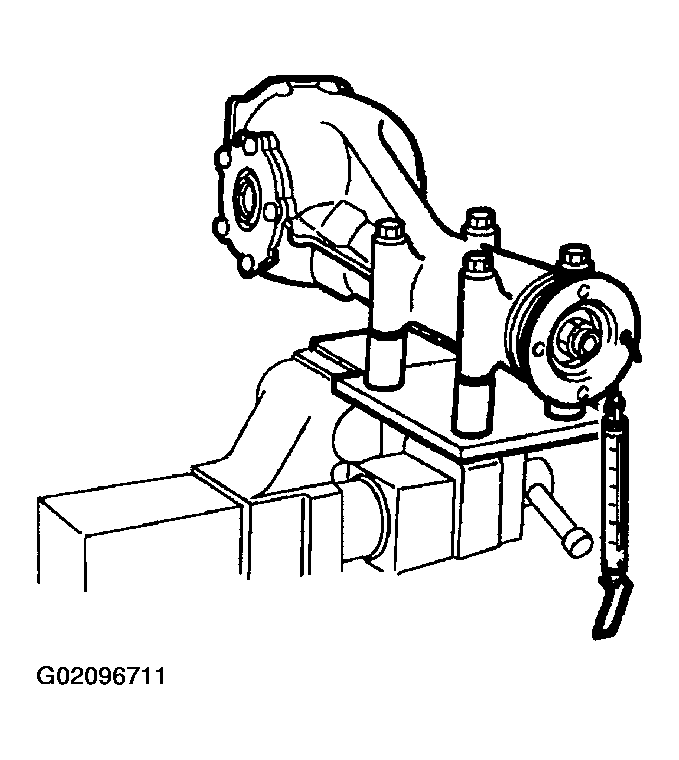

Fig 1: Checking Turning Resistance Increase

Courtesy of SUBARU OF AMERICA, INC.
