Rear Differential Member: Installation

Install in the reverse order of removal.

1. Position the front member on body by passing it under the parking brake cable and securing to rear differential.
   NOTE: When installing the rear differential front member, do not confuse the installation sequence of the stopper.

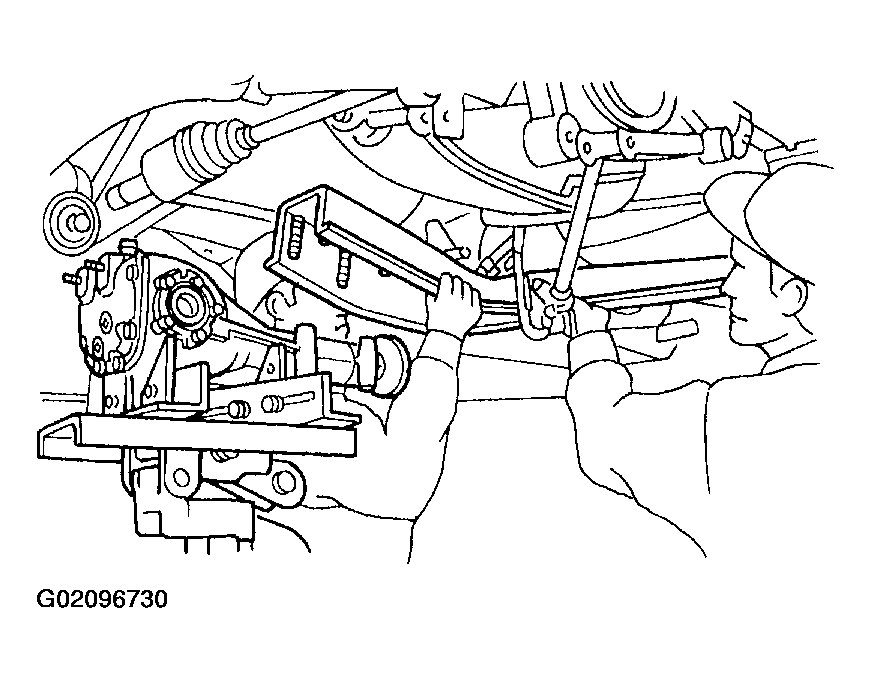

   Fig 1: Positioning Front Member On Body

   Courtesy of SUBARU OF AMERICA, INC.
2. Insert the DOJ of rear drive shaft into rear differential. Refer to REPLACEMENT , Rear Differential Side Oil Seal.
   NOTE: Before inserting, replace the differential side oil seal with a new one.

   ST 28099PA090 SIDE OIL SEAL PROTEXTOR

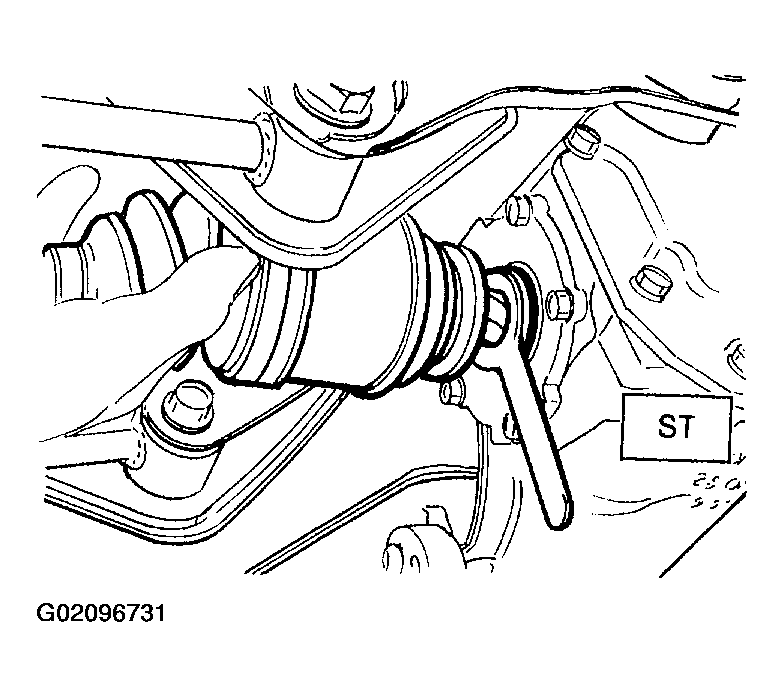

   Fig 2: Inserting DOJ Of Rear Drive Shaft Into Rear Differential

   Courtesy of SUBARU OF AMERICA, INC.
3. Hereafter, install in the reverse order of removal.
