Rear Differential Member: Assembly
- Install the dynamic damper to front differential member.
- Tightening torque:
20 N.m (2.0 kgf-m, 14.5 ft-lb)

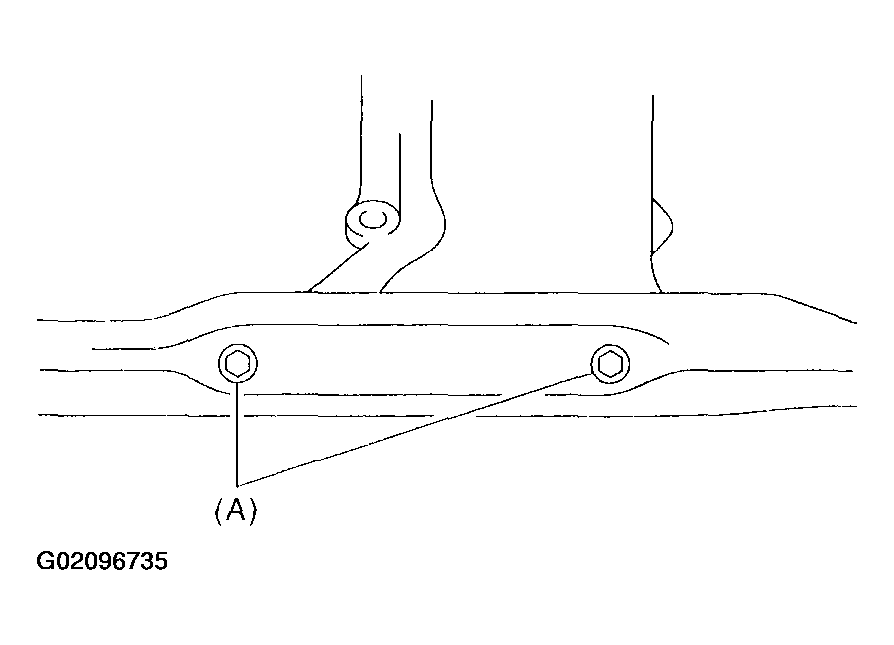

- Temporarily tighten the connecting bolt (A) which secures front differential to differential mount.
Courtesy of SUBARU OF AMERICA, INC.

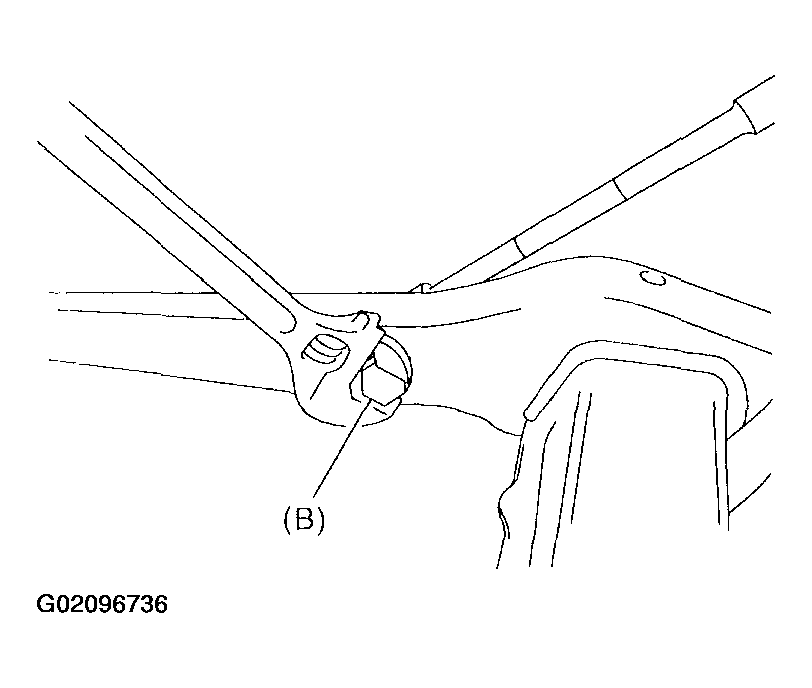

- Tighten the nut of connecting bolt (B).
- Tightening torque:
125 N.m (12.7 kgf-m, 92.2 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
- Tighten the nut of connecting bolt (A).
- Tightening torque:
70 N.m (7.1 kgf-m, 51.6 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
