Analog Data Are Displayed

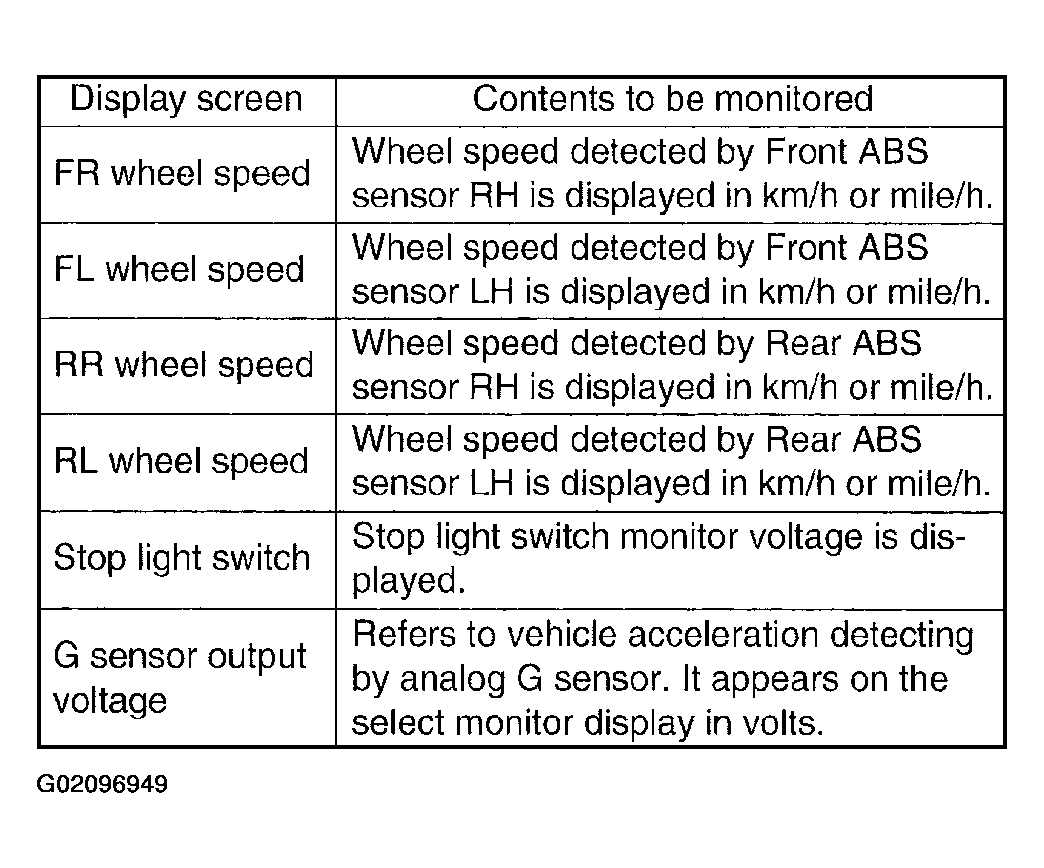

Fig 1: Analog Data Are Displayed
G02096949Courtesy of SUBARU OF AMERICA, INC.
