General Description
>>
Component
>>
At Select Lever
At Select Lever

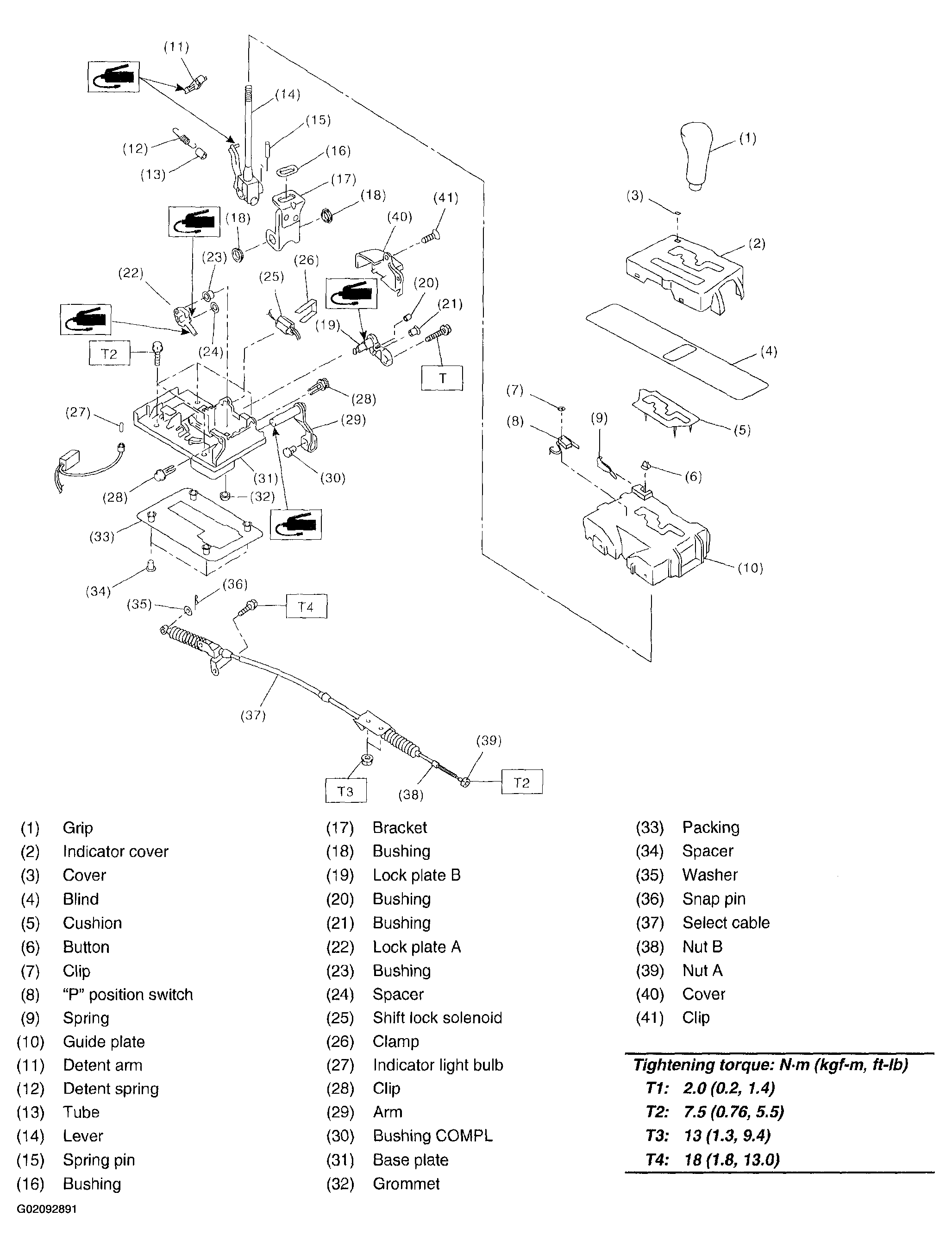

Fig 1: Identifying Automatic Transmission Select Lever Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
